Panel feed-through terminal block

Panel feed-through terminal block

Here you will find the CAD models of ECLASS 11.0
Catalog filter
All delivery countries/regions
All markets
...
ECLASS 11.0
27 - Electric engineering, automation, process control engineering
27-14 - Electrical installation, device
27-14-11 - Terminal (not overhead line)
27-14-11-34 - Panel feed-through terminal block
ECLASS 11.0
27-14-11-34 - Panel feed-through terminal block
Feedthrough terminal block, Conductor/solder/crimp quick disconnect terminal, Plate thickness: 1.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-101
Feedthrough terminal block, Conductor/solder/crimp quick disconnect ter...

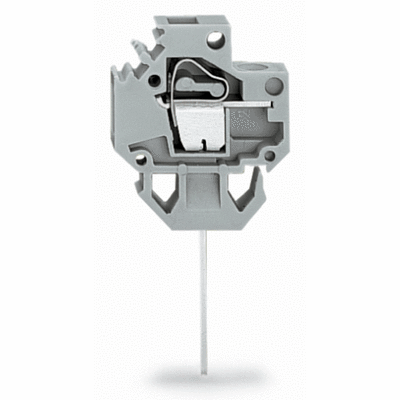

Feedthrough terminal block, Conductor/wire-wrap connection, Plate thickness: 1.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-102
Feedthrough terminal block, Conductor/wire-wrap connection, Plate thickness...

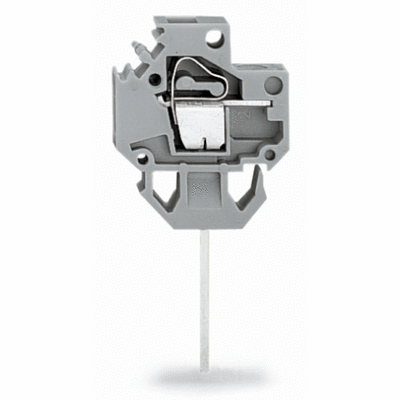

Feedthrough terminal block, Conductor/contact pin, Plate thickness: 2.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-103
Feedthrough terminal block, Conductor/contact pin, Plate thickness: 2.5 ...
Durchführungsklemme, Leiter-/Löt-und Flachsteckanschluss, Blechdicke 1.5 mm, 4 mm², Rastermaß 6 mm, 1-polig, CAGE CLAMP®
226-104
Durchführungsklemme, Leiter-/Löt-und Flachsteckanschluss, Blechdicke...

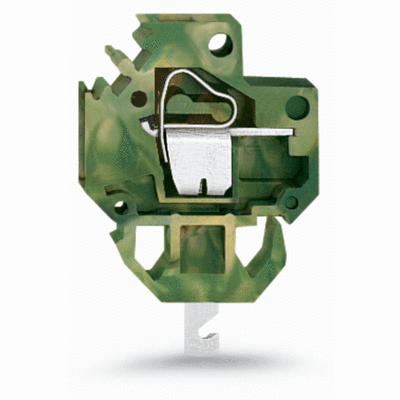

Ground conductor feedthrough terminal block, Conductor/solder/crimp quick disconnect terminal, Plate thickness: 1.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-107
Ground conductor feedthrough terminal block, Conductor/sold...

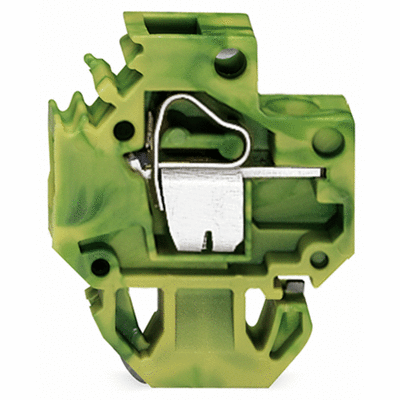

PE-Durchführungsklemme, Leiter-/Löt-und Flachsteckanschluss, Blechdicke 1.5 mm, 4 mm², Rastermaß 6 mm, 1-polig, CAGE CLAMP®
226-108
PE-Durchführungsklemme, Leiter-/Löt-und Flachsteckansc...

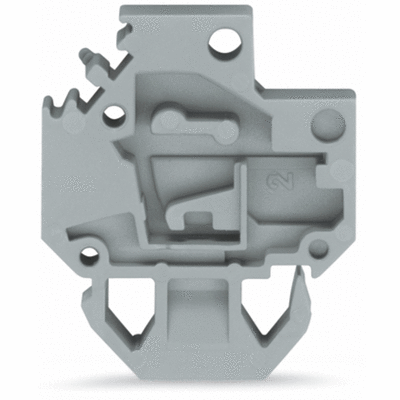

Spacer, for plate thickness 1.5 mm, 6 mm wide
226-109
Spacer, for plate thickness 1.5 mm, 6 mm wide

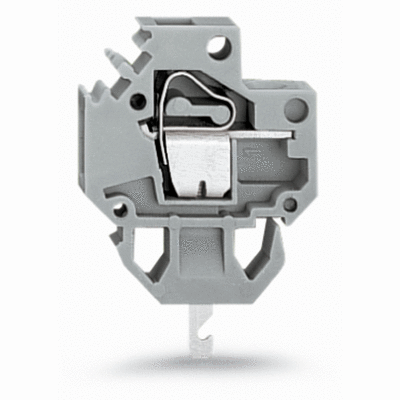

Feedthrough terminal block, Conductor/solder/crimp quick disconnect terminal, Plate thickness: 2.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-111
Feedthrough terminal block, Conductor/solder/crimp quick disconnect ter...
Feedthrough terminal block, Conductor/wire-wrap connection, Plate thickness: 1.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-112
Feedthrough terminal block, Conductor/wire-wrap connection, Plate thickness...
Feedthrough terminal block, Conductor/contact pin, Plate thickness: 2.5 mm, 4 mm², Pin spacing 6 mm, 1-pole, CAGE CLAMP®
226-113
Feedthrough terminal block, Conductor/contact pin, Plate thickness: 2.5 ...
Durchführungsklemme, Leiter-/Löt-und Flachsteckanschluss, Blechdicke 2.5 mm, 4 mm², Rastermaß 6 mm, 1-polig, CAGE CLAMP®
226-114
Durchführungsklemme, Leiter-/Löt-und Flachsteckanschluss, Blechdicke...

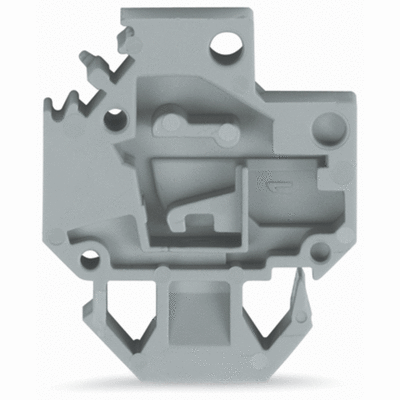

Spacer, for plate thickness 2.5 mm, 6 mm wide
226-119
Spacer, for plate thickness 2.5 mm, 6 mm wide
1-CONDUCTOR-FEEDTHROUGH TERMINAL BLOCK RIGHT ANGLE CONNECTION PIN 1x1.2 MM WITH FIXING FLANGES FOR FEEDTHROUGHAPPLICATIONS PIN SPACING 5 MM / 0.197 IN
231-602/017-000 TO 231-612/017-000
1-CONDUCTOR-FEEDTHROUGH TERMINAL BLO...
HEADER WITH FIXING FLANGE PIN SPACING 5 MM / 0.197 IN 100% PROTECTED AGAINST MISMATING WITH PRECEDING EARTH CONTACT
231-602/023-000 TO 231-612/023-000
HEADER WITH FIXING FLANGE PIN SPACING 5 ...

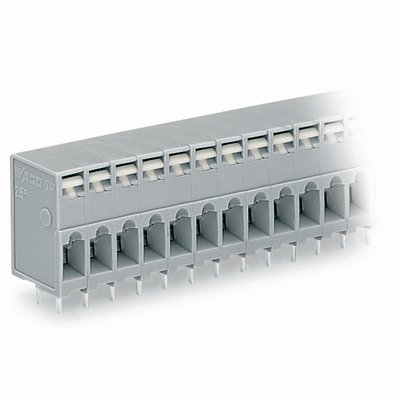

FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS / POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 5 MM / 0.197 IN
741-102 to 741-116
FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS /...

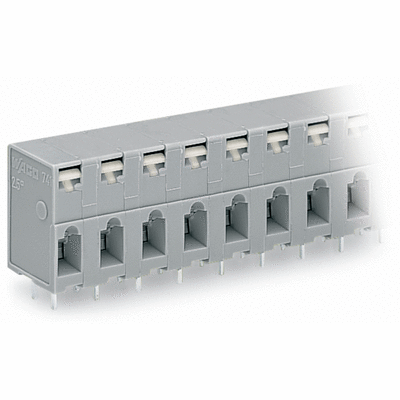

FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS / POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 7.5 MM / 0.295 IN
741-302 to 741-310
FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS /...

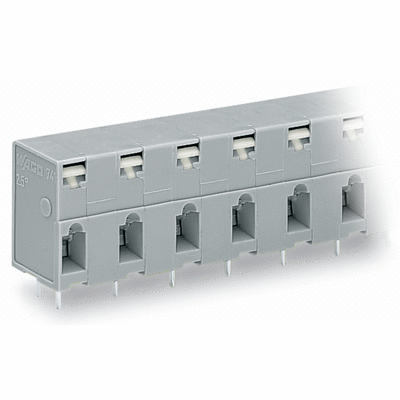

FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS / POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 10 MM / 0.394 IN
741-502 to 741-508
FEEDTHROUGH TERMINAL STRIPS 2 SOLDER PINS /...

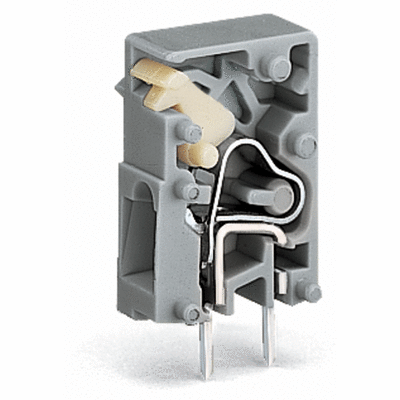

MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS / POLE 1 POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 5 MM / 0.197 IN
741-901
MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS /...

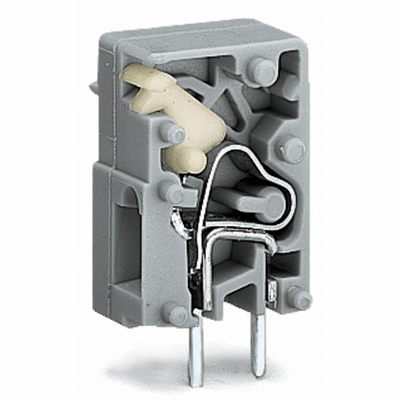

MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS / POLE 1 POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 7.5 MM / 0.295 IN
741-902
MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS /...

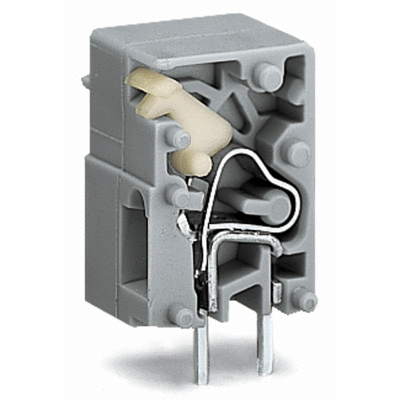

MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS / POLE 1 POLE WITH INTEGRATED PUSH BOTTONS AND TOUCH CONTACT TESTING PIN SPACING 10 MM / 0.394 IN
741-903
MODULAR FEEDTHROUGH TERMINAL BLOCK 2 SOLDER PINS / POLE 1 P...
