SCHEMA CAD Catalog
Select single-acting standard cylinders and double-acting standard cylinders from Schema Hydraulik as well as other hydraulic components and download CAD models free of charge in native or neutral CAD formats such as STEP on 3Dfindit.
Use the models directly for planning and design.
Manufacturer filter
Schematic hydraulics standard cylinder CAD models

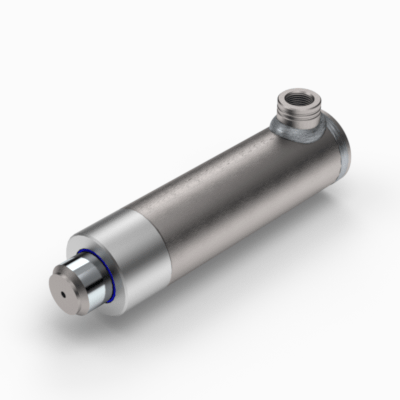

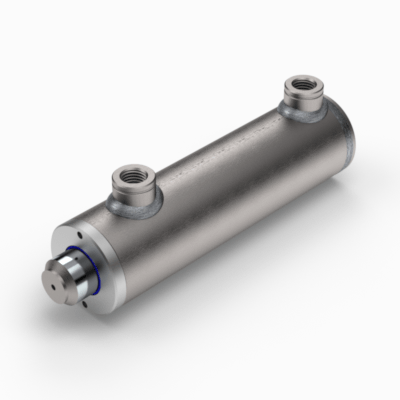

Single-acting standard cylinders and double-acting standard cylinders are used in hydraulic systems to implement linear movements and forces in machines, systems and devices. Typical applications include clamping tasks, lifting movements, positioning functions as well as pressing and pushing processes in mechanical and plant engineering.
Use the manufacturer-certified CAD models of the standard cylinders from Schema Hydraulik for your CAD workflow. Select the appropriate version and download the models free of charge to 3Dfindit in native or neutral CAD formats such as STEP. Use the data for layout planning, collision checks, installation space investigations and the creation of technical documentation.
