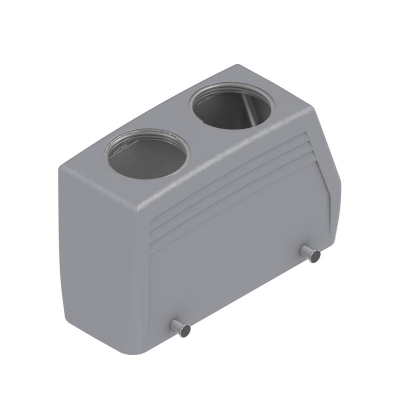

1009710000 - HDC 64D TOBU 2M32G

Shell for rectangular connectors

1009710000 - HDC 64D TOBU 2M32G

Weidmueller 1009710000

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

Arrangement of the cable lead-in

AAB224

Type of interlock

AAB373

Design of housing surface

AAB396

1009710000

HDC 64D TOBU 2M32G

Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)

The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.

4032248771394

Weidmueller Group

top

Transverse strap

powder-coated

Show compressed display (1 product)

Order number	1009710000
Shorttext	Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)
Longtext	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Latest change	23.06.2025 20:26:53
Unit

Keywords

Classifications

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Description short	Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)
GTIN-Code	4032248771394
Order Number	1009710000
Product website	https://eshop.weidmueller.com/p/1009710000
Use Case	https://eshop.weidmueller.com/p/1009710000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 Shell for rectangular connectors

Design of housing surface	powder-coated
Product type	HDC 64D TOBU 2M32G
GTIN	4032248771394
product article number of manufacturer	1009710000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1009710000
Size of connection thread	M32
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
color	gray
certificate/approval	CE; CURUS

ECLASS 13.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	top
Type of interlock	Transverse strap
Design of housing surface	powder-coated
Design of housing	Plug-in housing
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
shackle position	Subsection
Product type	HDC 64D TOBU 2M32G
GTIN	4032248771394
product article number of manufacturer	1009710000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1009710000
Size of connection thread	M32
Mounting method of the cable gland	metric
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	120
color of housing	gray
color	gray
certificate/approval	CE; CURUS
depth	76
material of housing	aluminum
width	57.8
UV-resistant	No

ECLASS 12.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	top
Type of interlock	Transverse strap
Design of housing surface	powder-coated
Design of housing	Plug-in housing
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
customs tariff number (TARIC)	85389099
shackle position	Subsection
Product type	HDC 64D TOBU 2M32G
GTIN	4032248771394
product article number of manufacturer	1009710000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1009710000
Size of connection thread	M32
Mounting method of the cable gland	metric
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from top, Plug housing, Side-locking clamp on lower side, Size: 8, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	120
color of housing	gray
color	gray
certificate/approval	CE; CURUS
depth	76
material of housing	aluminum
width	57.8
UV-resistant	No

ETIM 10.0

EC000437 Housing for rectangular connectors

Position cable feed	top
Type of locking	Transverse strap
Type of housing	Plug-in housing
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	metric
Height	120
Housing colour	gray
Depth	76
Housing material	aluminum
Width	57.8

ETIM 9.0

EC000437 Housing for rectangular connectors

Position cable feed	top
Type of locking	Transverse strap
Type of housing	Plug-in housing
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	metric
Height	120
Housing colour	gray
Depth	76
Housing material	aluminum
Width	57.8
UV resistant	No

ETIM 8.0

EC000437 Housing for rectangular connectors
