Weidmüller
Electric engineering, automation, process control engineering
Cable, wire
Ready-made data cable
Assembled sensor actuator-line

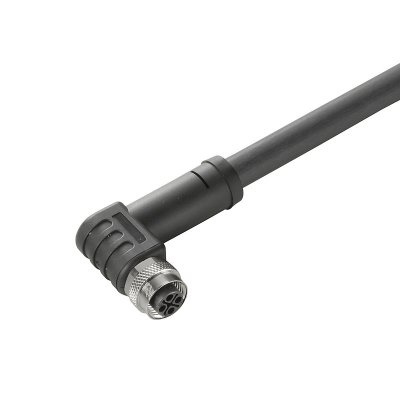

2050210500 - SAIL-M12BW-S-5.0P
Weidmüller
Cable, wire
Ready-made data cable
Assembled sensor actuator-line
2050210500 - SAIL-M12BW-S-5.0P
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 2050210500

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
Arrangement of the cable lead-in, head 1
AAB225
arrangement of the cable lead-in (head 2)
AAB226
Type of plug-in contact, head 1
AAB379
1
2050210500
SAIL-M12BW-S-5.0P
Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
4050118441543
Weidmueller Group
angled
angled
Female (socket)
Show compressed display (1 product)
Part information
Similar parts
Request for quote (RFQ)
Weidmüller - 2050210500
Order number2050210500
ShorttextSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
LongtextAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Latest change23.06.2025 20:07:08
Unit
Keywords

Classifications

CNS

CNSERPBASE Object Properties
Customs Tariff Number85444290
Description longAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Description shortSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
GTIN-Code4050118441543
Order Number2050210500
Product websitehttps://eshop.weidmueller.com/p/2050210500
Use Casehttps://eshop.weidmueller.com/p/2050210500
CNSPHYPROP Physical Properties

ECLASS 14.0

27-06-03-11 Assembled sensor actuator-line
Cable length can be configuredNo
Length of the preassembled line5
Coding (head 1)S-Coded
Degree of protection (IP), mountedIP67
suitable for cable guide chainYes
Product typeSAIL-M12BW-S-5.0P
GTIN4050118441543
product article number of manufacturer2050210500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2050210500
Knurl materialNot relevant
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatblack
certificate/approvalCE; CULUS; UKCA
Status display presentNo

ECLASS 13.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1angled
arrangement of the cable lead-in (head 2)angled
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line5
max. permissible cable outside temperature, fixed laid80
max. permissible cable outside temperature, when moving80
min. permissible cable outside temperature, fixed laid-50
min. permissible cable outside temperature, when moving-40
Coding (head 1)S-Coded
Degree of protection (IP), mountedIP67
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
rated current12
suitable for cable guide chainYes
Product typeSAIL-M12BW-S-5.0P
GTIN4050118441543
product article number of manufacturer2050210500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2050210500
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number4
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatblack
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
Status display presentNo
degree of protectionIP67
rated voltage600

ECLASS 12.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1angled
arrangement of the cable lead-in (head 2)angled
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line5
max. permissible cable outside temperature, fixed laid80
max. permissible cable outside temperature, when moving80
min. permissible cable outside temperature, fixed laid-50
min. permissible cable outside temperature, when moving-40
Coding (head 1)S-Coded
Degree of protection (IP), mountedIP67
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
customs tariff number (TARIC)85444290
rated current12
suitable for cable guide chainYes
Product typeSAIL-M12BW-S-5.0P
GTIN4050118441543
product article number of manufacturer2050210500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2050210500
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number4
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatblack
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
Status display presentNo
degree of protectionIP67
rated voltage600

ETIM 10.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedangled
Positioning cable feed, box-sidedangled
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration80
Permitted cable outer temperature during assembling/handling80
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In12
Type of plug-in contact, box-sidedFemale (socket)
Number of poles4
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP67
Rated voltage600

ETIM 9.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedangled
Positioning cable feed, box-sidedangled
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration80
Permitted cable outer temperature during assembling/handling80
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In12
Type of plug-in contact, box-sidedFemale (socket)
Number of poles4
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP67
Rated voltage600

ETIM 8.0

EC001855 Sensor-actuator patch cord
