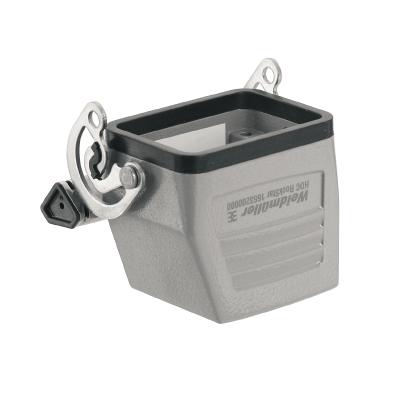

1021330000 - HDC 06B KLU 1M25G

Shell for rectangular connectors

1021330000 - HDC 06B KLU 1M25G

Weidmueller 1021330000

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

Arrangement of the cable lead-in

AAB224

Type of interlock

AAB373

Design of housing surface

AAB396

1021330000

HDC 06B KLU 1M25G

Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)

The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.

4032248734948

Weidmueller Group

Double sided

Longitudinal strap

powder-coated

Tampilkan tampilan terkompresi (1 produk)

Order number	1021330000
Shorttext	Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)
Longtext	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Perubahan terakhir	23.06.2025 20:26:53
Unit

Kata kunci

Klasifikasi

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Description short	Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)
GTIN-Code	4032248734948
Order Number	1021330000
Product website	https://eshop.weidmueller.com/p/1021330000
Use Case	https://eshop.weidmueller.com/p/1021330000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 Shell for rectangular connectors

Design of housing surface	powder-coated
Product type	HDC 06B KLU 1M25G
GTIN	4032248734948
product article number of manufacturer	1021330000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1021330000
Size of connection thread	PG16
Manufacturer product description	Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
color	gray
certificate/approval	CE; CURUS

ECLASS 13.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	Double sided
Type of interlock	Longitudinal strap
Design of housing surface	powder-coated
Design of housing	Coupling housing
seal present	Yes
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
shackle position	Subsection
Product type	HDC 06B KLU 1M25G
GTIN	4032248734948
product article number of manufacturer	1021330000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1021330000
Size of connection thread	PG16
Mounting method of the cable gland	PG
Manufacturer product description	Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	74
color of housing	gray
color	gray
certificate/approval	CE; CURUS
depth	71
material of housing	aluminum
width	62.5
UV-resistant	No

ECLASS 12.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	Double sided
Type of interlock	Longitudinal strap
Design of housing surface	powder-coated
Design of housing	Coupling housing
seal present	Yes
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
customs tariff number (TARIC)	85389099
shackle position	Subsection
Product type	HDC 06B KLU 1M25G
GTIN	4032248734948
product article number of manufacturer	1021330000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1021330000
Size of connection thread	PG16
Mounting method of the cable gland	PG
Manufacturer product description	Housing (industry plug-in connectors) Coupling housing, End-locking clamp, lower side, Size: 3, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	74
color of housing	gray
color	gray
certificate/approval	CE; CURUS
depth	71
material of housing	aluminum
width	62.5
UV-resistant	No

ETIM 10.0

EC000437 Housing for rectangular connectors

Position cable feed	Double sided
Type of locking	Longitudinal strap
Type of housing	Coupling housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	PG
Height	74
Housing colour	gray
Depth	71
Housing material	aluminum
Width	62.5

ETIM 9.0

EC000437 Housing for rectangular connectors

Position cable feed	Double sided
Type of locking	Longitudinal strap
Type of housing	Coupling housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	PG
Height	74
Housing colour	gray
Depth	71
Housing material	aluminum
Width	62.5
UV resistant	No

ETIM 8.0

EC000437 Housing for rectangular connectors
