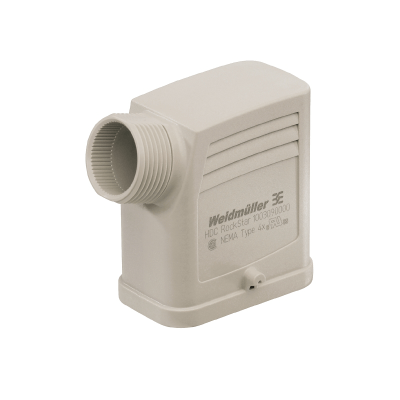

1003090000 - HDC HQP TSLU 1PG16

Shell for rectangular connectors

1003090000 - HDC HQP TSLU 1PG16

Weidmueller 1003090000

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

Arrangement of the cable lead-in

AAB224

Type of interlock

AAB373

Design of housing

AAB408

1003090000

HDC HQP TSLU 1PG16

Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)

The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.

4032248698028

Weidmueller Group

lateral

Transverse strap

Plug-in housing

Tampilkan tampilan terkompresi (1 produk)

Order number	1003090000
Shorttext	Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)
Longtext	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Perubahan terakhir	23.06.2025 20:26:52
Unit

Kata kunci

Klasifikasi

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Description short	Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)
GTIN-Code	4032248698028
Order Number	1003090000
Product website	https://eshop.weidmueller.com/p/1003090000
Use Case	https://eshop.weidmueller.com/p/1003090000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 Shell for rectangular connectors

Product type	HDC HQP TSLU 1PG16
GTIN	4032248698028
product article number of manufacturer	1003090000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1003090000
Size of connection thread	PG16
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
color	beige
certificate/approval	CE; CURUS

ECLASS 13.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	lateral
Type of interlock	Transverse strap
Design of housing	Plug-in housing
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
shackle position	Subsection
Product type	HDC HQP TSLU 1PG16
GTIN	4032248698028
product article number of manufacturer	1003090000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1003090000
Size of connection thread	PG16
Mounting method of the cable gland	PG
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	58.737
color of housing	beige
color	beige
certificate/approval	CE; CURUS
depth	54.546
flammability rating of the insulating material (based on UL 94)	V0
material of housing	Plastic
width	35

ECLASS 12.0

27-44-02-02 Shell for rectangular connectors

Arrangement of the cable lead-in	lateral
Type of interlock	Transverse strap
Design of housing	Plug-in housing
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
customs tariff number (TARIC)	85389099
shackle position	Subsection
Product type	HDC HQP TSLU 1PG16
GTIN	4032248698028
product article number of manufacturer	1003090000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1003090000
Size of connection thread	PG16
Mounting method of the cable gland	PG
Manufacturer product description	Housing (industry plug-in connectors) Cable entry from side, Plug housing, Side-locking clamp on lower side, Size: HQ, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	58.737
color of housing	beige
color	beige
certificate/approval	CE; CURUS
depth	54.546
Combustibility class	V0
material of housing	Plastic
width	35

ETIM 10.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Transverse strap
Type of housing	Plug-in housing
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	PG
Height	58.737
Housing colour	beige
Depth	54.546
Housing material	Plastic
Width	35

ETIM 9.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Transverse strap
Type of housing	Plug-in housing
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	Subsection
Mounting method of the cable gland	PG
Height	58.737
Housing colour	beige
Depth	54.546
Inflammability class of insulation material according to with UL94	V0
Housing material	Plastic
Width	35

ETIM 8.0

EC000437 Housing for rectangular connectors
