Weidmüller

Electric engineering, automation, process control engineering

Electrical cabinet, housing, rack

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000090356 - KEBIQL202015S2N0 AL

Weidmüller

...

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000090356 - KEBIQL202015S2N0 AL

Weidmueller 8000090356

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

suitable for outside installation

AAB644

suitable for metric installation

AAB681

ventilation door present

AAB770

8000090356

KEBIQL202015S2N0 AL

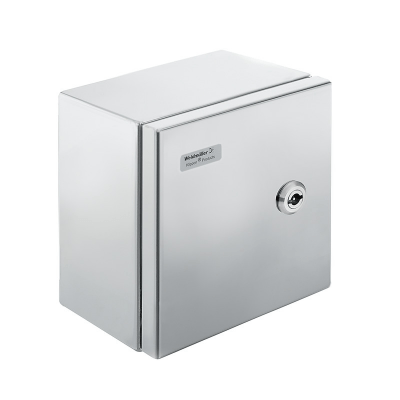

Metal housing, Width: 200 mm, Height: 200 mm, Depth: 150 mm, untreated, Flange plate: No, Quarter-turn fastener with double-bit insert

Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.

4064675855699

Weidmueller Group

Yes

Tampilkan tampilan terkompresi (1 produk)

Order number	8000090356
Shorttext	Metal housing, Width: 200 mm, Height: 200 mm, Depth: 150 mm, untreated, Flange plate: No, Quarter-turn fastener with double-bit insert
Longtext	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Perubahan terakhir	23.06.2025 20:17:23
Unit

Kata kunci

Klasifikasi

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Description short	Metal housing, Width: 200 mm, Height: 200 mm, Depth: 150 mm, untreated, Flange plate: No, Quarter-turn fastener with double-bit insert
GTIN-Code	4064675855699
Order Number	8000090356
Product website	https://eshop.weidmueller.com/p/8000090356
Use Case	https://eshop.weidmueller.com/p/8000090356

CNSPHYPROP Physical Properties

ECLASS 14.0

27-18-01-01 Electrical cabinet, Empty enclosures

Product type	KEBIQL202015S2N0 AL
GTIN	4064675855699
product article number of manufacturer	8000090356
Manufacturer name	Weidmueller Group
Brand	Klippon^®
address of additional link	https://eshop.weidmueller.com/p/8000090356
Assembly on floor is possible	No
Wall assembly possible	Yes

ECLASS 13.0

27-18-01-01 Electrical cabinet, Empty enclosures

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KEBIQL202015S2N0 AL
GTIN	4064675855699
product article number of manufacturer	8000090356
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	1
address of additional link	https://eshop.weidmueller.com/p/8000090356
Color number according to RAL	7001
height	200
color	Silver
depth	155
material	stainless steel - 1.4301
Assembly on floor is possible	No
Wall assembly possible	Yes
width	200
Material	Stainless steel
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ECLASS 12.0

27-18-01-01 Electrical cabinet, Empty enclosures

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
customs tariff number (TARIC)	85389099
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KEBIQL202015S2N0 AL
GTIN	4064675855699
product article number of manufacturer	8000090356
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	1
address of additional link	https://eshop.weidmueller.com/p/8000090356
Color number according to RAL	7001
height	200
color	Silver
depth	155
material	stainless steel - 1.4301
Assembly on floor is possible	No
Wall assembly possible	Yes
width	200
Material	Stainless steel
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ETIM 10.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor installation	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	1
RAL-number	7001
Height	200
Colour	Silver
Depth	155
Material	stainless steel - 1.4301
Width	200
Material quality	Stainless steel
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 9.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor set-up	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	1
RAL-number	7001
Height	200
Colour	Silver
Depth	155
Material	stainless steel - 1.4301
Width	200
Material quality	Stainless steel
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 8.0

EC000261 Enclosure/cabinet (empty)
