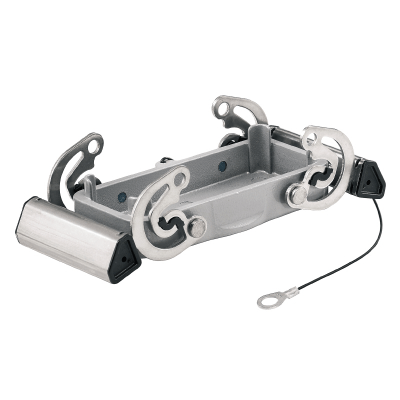

1009090000 - HDC 16B DODQ 2QB

Shell for rectangular connectors

1009090000 - HDC 16B DODQ 2QB

Weidmueller 1009090000

テーブルを展開

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

Type of interlock

AAB373

Design of housing surface

AAB396

screwed cable gland present

AAB737

1009090000

HDC 16B DODQ 2QB

Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)

The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.

4032248713837

Weidmueller Group

Transverse strap

powder-coated

圧縮表現を表示 (1 product)

オーダー番号	1009090000
ショートテキスト	Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)
長文	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
最終更新日	23.06.2025 20:26:53
単位

キーワード

クラフィシケーション

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
Description short	Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)
GTIN-Code	4032248713837
Order Number	1009090000
Product website	https://eshop.weidmueller.com/p/1009090000
Use Case	https://eshop.weidmueller.com/p/1009090000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 角型コネクター用ハウジング

住宅表面のデザイン	powder-coated
製品タイプ	HDC 16B DODQ 2QB
ジーティーエヌ	4032248713837
メーカー商品番号	1009090000
メーカー名	Weidmueller Group
ブランド	RockStar^®
追加リンクのアドレス	https://eshop.weidmueller.com/p/1009090000
メーカー商品説明	Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)
メーカー製品名	Housing (industry plug-in connectors)
カラー	gray

ECLASS 13.0

27-44-02-02 角型コネクター用ハウジング

Type of interlock	Transverse strap
Design of housing surface	powder-coated
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
shackle position	top section
Product type	HDC 16B DODQ 2QB
GTIN	4032248713837
product article number of manufacturer	1009090000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1009090000
Manufacturer product description	Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	129.5
color of housing	gray
color	gray
depth	36.800
material of housing	aluminum
Flap cover present	Yes
width	57

ECLASS 12.0

27-44-02-02 Shell for rectangular connectors

Type of interlock	Transverse strap
Design of housing surface	powder-coated
screwed cable gland present	No
Degree of protection (IP), mounted	IP65
EMC design present	No
Min. operating temperature	-40 °C ... 125 °C
Max. operating temperature	-40 °C ... 125 °C
customs tariff number (TARIC)	85389099
shackle position	top section
Product type	HDC 16B DODQ 2QB
GTIN	4032248713837
product article number of manufacturer	1009090000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1009090000
Manufacturer product description	Housing (industry plug-in connectors) Cover for lower part of housing, Side-locking clamp on upper side, Size: 6, IP65 (in plugged condition)
Manufacturer product designation	Housing (industry plug-in connectors)
height	129.5
color of housing	gray
color	gray
depth	36.800
material of housing	aluminum
Flap cover present	Yes
width	57

ETIM 10.0

EC000437 Housing for rectangular connectors

Type of locking	Transverse strap
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	top section
Height	129.5
Housing colour	gray
Depth	36.800
Housing material	aluminum
With hinged lid	Yes
Width	57

ETIM 9.0

EC000437 Housing for rectangular connectors

Type of locking	Transverse strap
With cable screw gland	No
Degree of protection (IP), mounted	IP65
EMC-version	No
Operating temperature	-40 °C ... 125 °C
Position of the shackle	top section
Height	129.5
Housing colour	gray
Depth	36.800
Housing material	aluminum
With hinged lid	Yes
Width	57

ETIM 8.0

EC000437 Housing for rectangular connectors
