Weidmüller

Electric engineering, automation, process control engineering

Electrical cabinet, housing, rack

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000090352 - KEBIHS403020S2N1 AL

Weidmüller

...

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000090352 - KEBIHS403020S2N1 AL

Weidmueller 8000090352

표 확장

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

suitable for outside installation

AAB644

suitable for metric installation

AAB681

ventilation door present

AAB770

8000090352

KEBIHS403020S2N1 AL

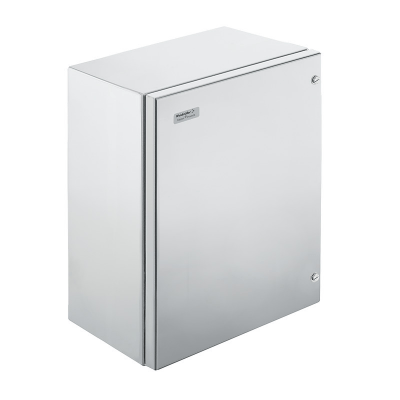

Metal housing, Width: 300 mm, Height: 400 mm, Depth: 200 mm, untreated, Flange plate: Yes, Bottom, M5 hexagonal screw with slot and 10mm distance across flats + hinge

Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.

4064675855668

Weidmueller Group

Yes

압축된 표현 표시(1 제품)

주문번호	8000090352
Shorttext	Metal housing, Width: 300 mm, Height: 400 mm, Depth: 200 mm, untreated, Flange plate: Yes, Bottom, M5 hexagonal screw with slot and 10mm distance across flats + hinge
Longtext	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
최근 변경	23.06.2025 20:17:23
단위

키 워드

Classifications

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Description short	Metal housing, Width: 300 mm, Height: 400 mm, Depth: 200 mm, untreated, Flange plate: Yes, Bottom, M5 hexagonal screw with slot and 10mm distance across flats + hinge
GTIN-Code	4064675855668
Order Number	8000090352
Product website	https://eshop.weidmueller.com/p/8000090352
Use Case	https://eshop.weidmueller.com/p/8000090352

CNSPHYPROP Physical Properties

ECLASS 14.0

27-18-01-01 차폐 (공)

제품 유형	KEBIHS403020S2N1 AL
GTIN	4064675855668
제조업체의 제품 품목 번호	8000090352
제조업체 이름	Weidmueller Group
브랜드	Klippon^®
추가 링크 주소	https://eshop.weidmueller.com/p/8000090352
바닥에 조립 가능	No
벽면 조립 가능	Yes

ECLASS 13.0

27-18-01-01 차폐 (공)

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KEBIHS403020S2N1 AL
GTIN	4064675855668
product article number of manufacturer	8000090352
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	2
address of additional link	https://eshop.weidmueller.com/p/8000090352
Color number according to RAL	7001
height	410
color	Silver
depth	205.6
material	stainless steel - 1.4301
Assembly on floor is possible	No
Wall assembly possible	Yes
width	300
Material	Stainless steel
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ECLASS 12.0

27-18-01-01 차폐 (공)

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
customs tariff number (TARIC)	85389099
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KEBIHS403020S2N1 AL
GTIN	4064675855668
product article number of manufacturer	8000090352
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	2
address of additional link	https://eshop.weidmueller.com/p/8000090352
Color number according to RAL	7001
height	410
color	Silver
depth	205.6
material	stainless steel - 1.4301
Assembly on floor is possible	No
Wall assembly possible	Yes
width	300
Material	Stainless steel
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ETIM 10.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor installation	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	2
RAL-number	7001
Height	410
Colour	Silver
Depth	205.6
Material	stainless steel - 1.4301
Width	300
Material quality	Stainless steel
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 9.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor set-up	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	2
RAL-number	7001
Height	410
Colour	Silver
Depth	205.6
Material	stainless steel - 1.4301
Width	300
Material quality	Stainless steel
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 8.0

EC000261 Enclosure/cabinet (empty)
