Weidmüller
Electric engineering, automation, process control engineering
Cable, wire
Ready-made data cable
Assembled sensor actuator-line

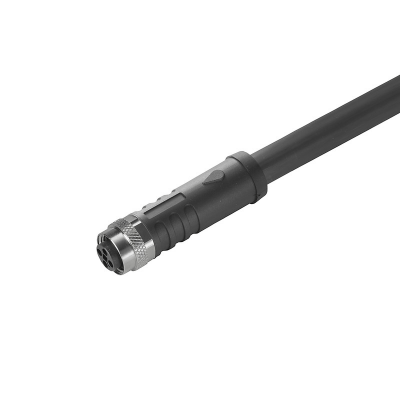

2050680150 - SAIL-M12BG-T-1.5H
Weidmüller
Cable, wire
Ready-made data cable
Assembled sensor actuator-line
2050680150 - SAIL-M12BG-T-1.5H
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 2050680150

표 확장
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
Arrangement of the cable lead-in, head 1
AAB225
arrangement of the cable lead-in (head 2)
AAB226
Type of plug-in contact, head 1
AAB379
1
2050680150
SAIL-M12BG-T-1.5H
Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
4050118441772
Weidmueller Group
straight
straight
Female (socket)
압축된 표현 표시(1 제품)
파트정보
유사파트
Request for quote (RFQ)
Weidmüller - 2050680150
주문번호2050680150
ShorttextSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
LongtextAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
최근 변경23.06.2025 20:07:10
단위
키 워드

Classifications

CNS

CNSERPBASE Object Properties
Customs Tariff Number85444290
Description longAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Description shortSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
GTIN-Code4050118441772
Order Number2050680150
Product websitehttps://eshop.weidmueller.com/p/2050680150
Use Casehttps://eshop.weidmueller.com/p/2050680150
CNSPHYPROP Physical Properties

ECLASS 14.0

27-06-03-11 조립된 센서 액추에이터 라인
케이블 길이 구성 가능No
사전 조립된 라인의 길이1.500
코딩(헤드 1)T-coded
보호 등급(IP), 장착형IP67
케이블 가이드 체인에 적합Yes
제품 유형SAIL-M12BG-T-1.5H
GTIN4050118441772
제조업체의 제품 품목 번호2050680150
제조업체 이름Weidmueller Group
추가 링크 주소https://eshop.weidmueller.com/p/2050680150
널 소재Not relevant
제조업체 제품 설명Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
용접 비드에 대한 내성No
제조업체 제품 지정Sensor-actuator cable (assembled)
코트 색상black
인증서/승인CE; CULUS; UKCA

ECLASS 13.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1straight
arrangement of the cable lead-in (head 2)straight
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line1.500
max. permissible cable outside temperature, fixed laid90
max. permissible cable outside temperature, when moving90
min. permissible cable outside temperature, fixed laid-50
min. permissible cable outside temperature, when moving-40
Coding (head 1)T-coded
Degree of protection (IP), mountedIP67
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
rated current12
suitable for cable guide chainYes
Product typeSAIL-M12BG-T-1.5H
GTIN4050118441772
product article number of manufacturer2050680150
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2050680150
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number4
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatblack
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
degree of protectionIP67
rated voltage63

ECLASS 12.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1straight
arrangement of the cable lead-in (head 2)straight
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line1.500
max. permissible cable outside temperature, fixed laid90
max. permissible cable outside temperature, when moving90
min. permissible cable outside temperature, fixed laid-50
min. permissible cable outside temperature, when moving-40
Coding (head 1)T-coded
Degree of protection (IP), mountedIP67
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
customs tariff number (TARIC)85444290
rated current12
suitable for cable guide chainYes
Product typeSAIL-M12BG-T-1.5H
GTIN4050118441772
product article number of manufacturer2050680150
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2050680150
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number4
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 4, Female socket, straight, Cable length: 1.5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatblack
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
degree of protectionIP67
rated voltage63

ETIM 10.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedstraight
Positioning cable feed, box-sidedstraight
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration90
Permitted cable outer temperature during assembling/handling90
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In12
Type of plug-in contact, box-sidedFemale (socket)
Number of poles4
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP67
Rated voltage63

ETIM 9.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedstraight
Positioning cable feed, box-sidedstraight
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration90
Permitted cable outer temperature during assembling/handling90
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In12
Type of plug-in contact, box-sidedFemale (socket)
Number of poles4
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP67
Rated voltage63

ETIM 8.0

EC001855 Sensor-actuator patch cord
