2455190150 - SAIL-M12BW-K-1.5P

Weidmüller

...

Cable, wire

Ready-made data cable

Assembled sensor actuator-line

2455190150 - SAIL-M12BW-K-1.5P

Weidmueller 2455190150

표 확장

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

Arrangement of the cable lead-in, head 1

AAB225

arrangement of the cable lead-in (head 2)

AAB226

Type of plug-in contact, head 1

AAB379

2455190150

SAIL-M12BW-K-1.5P

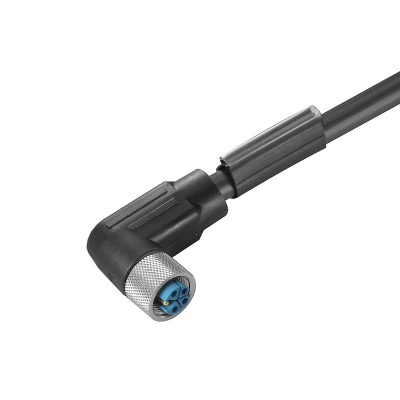

Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No

Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.

4050118470000

Weidmueller Group

angled

Female (socket)

압축된 표현 표시(1 제품)

주문번호	2455190150
Shorttext	Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No
Longtext	Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
최근 변경	23.06.2025 20:07:12
단위

키 워드

Classifications

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85444290
Description long	Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Description short	Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No
GTIN-Code	4050118470000
Order Number	2455190150
Product website	https://eshop.weidmueller.com/p/2455190150
Use Case	https://eshop.weidmueller.com/p/2455190150

CNSPHYPROP Physical Properties

ECLASS 14.0

27-06-03-11 조립된 센서 액추에이터 라인

케이블 길이 구성 가능	No
사전 조립된 라인의 길이	1.500
코딩(헤드 1)	K-coded
보호 등급(IP), 장착형	IP65
케이블 가이드 체인에 적합	Yes
제품 유형	SAIL-M12BW-K-1.5P
GTIN	4050118470000
제조업체의 제품 품목 번호	2455190150
제조업체 이름	Weidmueller Group
추가 링크 주소	https://eshop.weidmueller.com/p/2455190150
널 소재	Not relevant
제조업체 제품 설명	Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No
용접 비드에 대한 내성	No
제조업체 제품 지정	Sensor-actuator cable (assembled)
코트 색상	black
인증서/승인	CE; CULUS; UKCA
상태 표시 있음	No

ECLASS 13.0

27-06-03-11 Assembled sensor actuator-line

Arrangement of the cable lead-in, head 1	angled
arrangement of the cable lead-in (head 2)	angled
Type of plug-in contact, head 1	Female (socket)
Design of the electrical connection (head 1)	M12
Design of the electrical connection (head 2)	M12
Cable length can be configured	No
Length of the preassembled line	1.500
max. permissible cable outside temperature, fixed laid	80
max. permissible cable outside temperature, when moving	80
min. permissible cable outside temperature, fixed laid	-40
min. permissible cable outside temperature, when moving	-30
Coding (head 1)	K-coded
Degree of protection (IP), mounted	IP65
Radial networked	No
Material of the contact coat	Gold
Material of the cable mantle	PUR (polyurethane)
rated current	12
suitable for cable guide chain	Yes
Product type	SAIL-M12BW-K-1.5P
GTIN	4050118470000
product article number of manufacturer	2455190150
Manufacturer name	Weidmueller Group
address of additional link	https://eshop.weidmueller.com/p/2455190150
Type of plug-in contact (head 2)	Female (socket)
Knurl material	Not relevant
Pole number	5
Manufacturer product description	Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No
Resistant to welding beads	No
Manufacturer product designation	Sensor-actuator cable (assembled)
Color of coat	black
certificate/approval	CE; CULUS; UKCA
Without halogens	Yes
shielded	No
Status display present	No
degree of protection	IP65
rated voltage	600

ECLASS 12.0

27-06-03-11 Assembled sensor actuator-line

Arrangement of the cable lead-in, head 1	angled
arrangement of the cable lead-in (head 2)	angled
Type of plug-in contact, head 1	Female (socket)
Design of the electrical connection (head 1)	M12
Design of the electrical connection (head 2)	M12
Cable length can be configured	No
Length of the preassembled line	1.500
max. permissible cable outside temperature, fixed laid	80
max. permissible cable outside temperature, when moving	80
min. permissible cable outside temperature, fixed laid	-40
min. permissible cable outside temperature, when moving	-30
Coding (head 1)	K-coded
Degree of protection (IP), mounted	IP65
Radial networked	No
Material of the contact coat	Gold
Material of the cable mantle	PUR (polyurethane)
customs tariff number (TARIC)	85444290
rated current	12
suitable for cable guide chain	Yes
Product type	SAIL-M12BW-K-1.5P
GTIN	4050118470000
product article number of manufacturer	2455190150
Manufacturer name	Weidmueller Group
address of additional link	https://eshop.weidmueller.com/p/2455190150
Type of plug-in contact (head 2)	Female (socket)
Knurl material	Not relevant
Pole number	5
Manufacturer product description	Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 1.5 m, Shielded: No
Resistant to welding beads	No
Manufacturer product designation	Sensor-actuator cable (assembled)
Color of coat	black
certificate/approval	CE; CULUS; UKCA
Without halogens	Yes
shielded	No
Status display present	No
degree of protection	IP65
rated voltage	600

ETIM 10.0

EC001855 Sensor-actuator patch cord

Positioning cable feed, field-sided	angled
Positioning cable feed, box-sided	angled
Type of plug-in contact, field sided	Female (socket)
Type of electrical connection, field-sided	M12
Type of electrical connection, box-sided	M12
Permitted cable outer temperature after assembling without vibration	80
Permitted cable outer temperature during assembling/handling	80
Vulcanize	No
Material of contact surface	Gold
Material of cable sheath	PUR (polyurethane)
Rated current In	12
Type of plug-in contact, box-sided	Female (socket)
Number of poles	5
Halogen free	Yes
Screened	No
Degree of protection (IP)	IP65
Rated voltage	600

ETIM 9.0

EC001855 Sensor-actuator patch cord

Positioning cable feed, field-sided	angled
Positioning cable feed, box-sided	angled
Type of plug-in contact, field sided	Female (socket)
Type of electrical connection, field-sided	M12
Type of electrical connection, box-sided	M12
Permitted cable outer temperature after assembling without vibration	80
Permitted cable outer temperature during assembling/handling	80
Vulcanize	No
Material of contact surface	Gold
Material of cable sheath	PUR (polyurethane)
Rated current In	12
Type of plug-in contact, box-sided	Female (socket)
Number of poles	5
Halogen free	Yes
Screened	No
Degree of protection (IP)	IP65
Rated voltage	600

ETIM 8.0

EC001855 Sensor-actuator patch cord
