QTH-030-01-F-D-RA
1/5
Part Number
PN
Series
SERIES
Number of Positions (per Row)
POS
Lead Style
LS
Plating
PLOPT
Row Specification
ROW
Right Angle
RA
Plastic Guide Post
GPOPT
Kapton Pad
KOPT
Pad Show/Hide (Model Only)
SHOWPAD
Dim A
A [INCH]
Dim B
B [INCH]
Dim C
C [INCH]
1
QTH-030-01-F-D-RA
QTH-RA
-030
01
-F: 3µ" Selective Gold Flash on Contact Area, Matte Tin Tail
-D - Double Row
-RA - Right Angle
Not Selected
Not Selected
Not Applicable
1.213
1.013
1.013
| Standard nummer | QTH-RA Series |

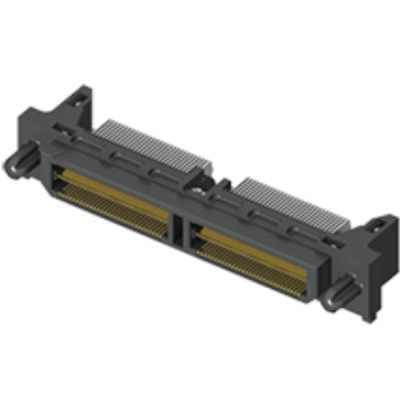

| Beskrivelse av | QTH-RA Series - (0,50 mm) .0197" Right Angle Ground Plane Header |
| Selskap | Samtec |
| Siste endring | 04.07.2024 10:17:03 |
| Enhet |
QTH-RA Series,QTH-RA Series - (0,50 mm) .0197" Right Angle Ground Plane Header,Samtec
