Weidmüller
Electric engineering, automation, process control engineering
Cable, wire
Ready-made data cable
Assembled sensor actuator-line
2455200500 - SAIL-M12BW-L-5.0PGR
Weidmüller
Cable, wire
Ready-made data cable
Assembled sensor actuator-line
2455200500 - SAIL-M12BW-L-5.0PGR
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 2455200500

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
Arrangement of the cable lead-in, head 1
AAB225
arrangement of the cable lead-in (head 2)
AAB226
Type of plug-in contact, head 1
AAB379
1
2455200500
SAIL-M12BW-L-5.0PGR

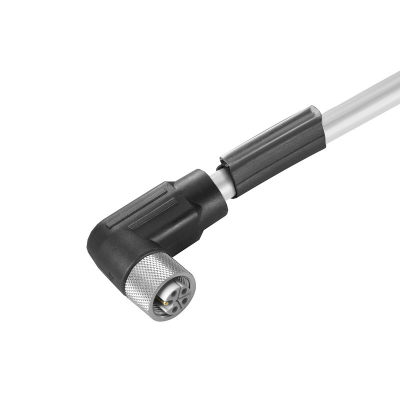

Sensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
4050118470062
Weidmueller Group
angled
angled
Female (socket)
Vis komprimert visning (1 produkt)
Informasjon om deler
Lignende deler
Request for quote (RFQ)
Weidmüller - 2455200500
Order number2455200500
ShorttextSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
LongtextAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Siste endring23.06.2025 20:07:13
Enhet
Nøkkelord

Klassifiseringer

CNS

CNSERPBASE Object Properties
Customs Tariff Number85444290
Description longAssembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
Description shortSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
GTIN-Code4050118470062
Order Number2455200500
Product websitehttps://eshop.weidmueller.com/p/2455200500
Use Casehttps://eshop.weidmueller.com/p/2455200500
CNSPHYPROP Physical Properties

ECLASS 14.0

27-06-03-11 Assembled sensor actuator-line
Cable length can be configuredNo
Length of the preassembled line5
Coding (head 1)L-coded
Degree of protection (IP), mountedIP65
suitable for cable guide chainYes
Product typeSAIL-M12BW-L-5.0PGR
GTIN4050118470062
product article number of manufacturer2455200500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2455200500
Knurl materialNot relevant
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatgray
certificate/approvalCE; CULUS; UKCA
Status display presentNo

ECLASS 13.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1angled
arrangement of the cable lead-in (head 2)angled
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line5
max. permissible cable outside temperature, fixed laid80
max. permissible cable outside temperature, when moving80
min. permissible cable outside temperature, fixed laid-40
min. permissible cable outside temperature, when moving-30
Coding (head 1)L-coded
Degree of protection (IP), mountedIP65
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
rated current16
suitable for cable guide chainYes
Product typeSAIL-M12BW-L-5.0PGR
GTIN4050118470062
product article number of manufacturer2455200500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2455200500
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number5
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatgray
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
Status display presentNo
degree of protectionIP65
rated voltage50

ECLASS 12.0

27-06-03-11 Assembled sensor actuator-line
Arrangement of the cable lead-in, head 1angled
arrangement of the cable lead-in (head 2)angled
Type of plug-in contact, head 1Female (socket)
Design of the electrical connection (head 1)M12
Design of the electrical connection (head 2)M12
Cable length can be configuredNo
Length of the preassembled line5
max. permissible cable outside temperature, fixed laid80
max. permissible cable outside temperature, when moving80
min. permissible cable outside temperature, fixed laid-40
min. permissible cable outside temperature, when moving-30
Coding (head 1)L-coded
Degree of protection (IP), mountedIP65
Radial networkedNo
Material of the contact coatGold
Material of the cable mantlePUR (polyurethane)
customs tariff number (TARIC)85444290
rated current16
suitable for cable guide chainYes
Product typeSAIL-M12BW-L-5.0PGR
GTIN4050118470062
product article number of manufacturer2455200500
Manufacturer nameWeidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2455200500
Type of plug-in contact (head 2)Female (socket)
Knurl materialNot relevant
Pole number5
Manufacturer product descriptionSensor-actuator Cable (assembled) One end without connector, M12, Number of poles: 5, Socket, angled, LED: No, Cable length: 5 m, Shielded: No
Resistant to welding beadsNo
Manufacturer product designationSensor-actuator cable (assembled)
Color of coatgray
certificate/approvalCE; CULUS; UKCA
Without halogensYes
shieldedNo
Status display presentNo
degree of protectionIP65
rated voltage50

ETIM 10.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedangled
Positioning cable feed, box-sidedangled
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration80
Permitted cable outer temperature during assembling/handling80
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In16
Type of plug-in contact, box-sidedFemale (socket)
Number of poles5
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP65
Rated voltage50

ETIM 9.0

EC001855 Sensor-actuator patch cord
Positioning cable feed, field-sidedangled
Positioning cable feed, box-sidedangled
Type of plug-in contact, field sidedFemale (socket)
Type of electrical connection, field-sidedM12
Type of electrical connection, box-sidedM12
Permitted cable outer temperature after assembling without vibration80
Permitted cable outer temperature during assembling/handling80
VulcanizeNo
Material of contact surfaceGold
Material of cable sheathPUR (polyurethane)
Rated current In16
Type of plug-in contact, box-sidedFemale (socket)
Number of poles5
Halogen freeYes
ScreenedNo
Degree of protection (IP)IP65
Rated voltage50

ETIM 8.0

EC001855 Sensor-actuator patch cord
