Weidmüller

Electric engineering, automation, process control engineering

Electrical cabinet, housing, rack

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

2934190000 - KLIPPON K75

Weidmüller

...

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

2934190000 - KLIPPON K75

Weidmueller 2934190000

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

type of mounting

AAB451

suitable for outside installation

AAB644

suitable for metric installation

AAB681

2934190000

KLIPPON K75

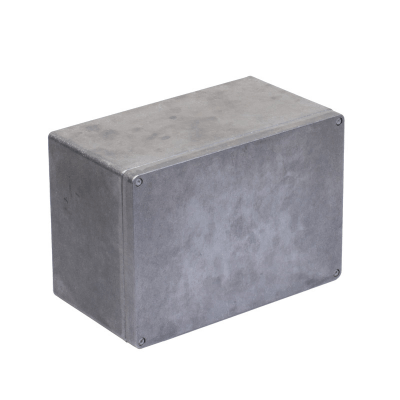

Metal housing, Width: 330 mm, Height: 230 mm, Depth: 181 mm, untreated, Flange plate: No, M6 torx stainless steel screws with slot

Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.

4099986682429

Weidmueller Group

wall/floor

Yes

Mostrar vista comprimida (1 do produto)

Número de encomenda	2934190000
Shorttext	Metal housing, Width: 330 mm, Height: 230 mm, Depth: 181 mm, untreated, Flange plate: No, M6 torx stainless steel screws with slot
Longtext	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Última alteração	23.06.2025 20:17:21
Unidade

Palavras-chave:

Classificações

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85369095
Description long	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Description short	Metal housing, Width: 330 mm, Height: 230 mm, Depth: 181 mm, untreated, Flange plate: No, M6 torx stainless steel screws with slot
GTIN-Code	4099986682429
Order Number	2934190000
Product website	https://eshop.weidmueller.com/p/2934190000
Use Case	https://eshop.weidmueller.com/p/2934190000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-18-01-01 Fechamento (vazio)

tipo de montagem	wall/floor
Tipo de produto	KLIPPON K75
GTIN	4099986682429
número do artigo de produto do fabricante	2934190000
Nome do fabricante	Weidmueller Group
Marca	Klippon K ^®
endereço da ligação adicional	https://eshop.weidmueller.com/p/2934190000
É possível a montagem no chão	No
Possibilidade de montagem na parede	Yes

ECLASS 13.0

27-18-01-01 Fechamento (vazio)

type of mounting	wall/floor
suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KLIPPON K75
GTIN	4099986682429
product article number of manufacturer	2934190000
Manufacturer name	Weidmueller Group
Brand	Klippon K ^®
Number of doors front	0
Number of locks	0
address of additional link	https://eshop.weidmueller.com/p/2934190000
Color number according to RAL	7001
Degree of protection (NEMA)	NEMA 4
height	230
color	Silver
depth	181
material	aluminum
Assembly on floor is possible	No
Wall assembly possible	Yes
width	330
Material	Material combinations
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ECLASS 12.0

27-18-01-01 Fechamento (vazio)

type of mounting	wall/floor
suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
customs tariff number (TARIC)	85369095
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KLIPPON K75
GTIN	4099986682429
product article number of manufacturer	2934190000
Manufacturer name	Weidmueller Group
Brand	Klippon K ^®
Number of doors front	0
Number of locks	0
address of additional link	https://eshop.weidmueller.com/p/2934190000
Color number according to RAL	7001
Degree of protection (NEMA)	NEMA 4
height	230
color	Silver
depth	181
material	aluminum
Assembly on floor is possible	No
Wall assembly possible	Yes
width	330
Material	Material combinations
Mounting plate present	No
Surface	untreated
degree of protection	IP66

ETIM 10.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor installation	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	0
Number of locks	0
RAL-number	7001
Degree of protection (NEMA)	NEMA 4
Height	230
Colour	Silver
Depth	181
Material	aluminum
Width	330
Material quality	Material combinations
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 9.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor set-up	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	0
Number of locks	0
RAL-number	7001
Degree of protection (NEMA)	NEMA 4
Height	230
Colour	Silver
Depth	181
Material	aluminum
Width	330
Material quality	Material combinations
With mounting plate	No
Surface finishing	untreated
Degree of protection (IP)	IP66

ETIM 8.0

EC000261 Enclosure/cabinet (empty)
