Weidmüller

Electric engineering, automation, process control engineering

Electrical cabinet, housing, rack

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000108833 - KTB MH 302015 S4E3

Weidmüller

...

Electrical cabinet (empty)

Electrical cabinet, Empty enclosures

8000108833 - KTB MH 302015 S4E3

Weidmueller 8000108833

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

suitable for outside installation

AAB644

suitable for metric installation

AAB681

ventilation door present

AAB770

8000108833

KTB MH 302015 S4E3

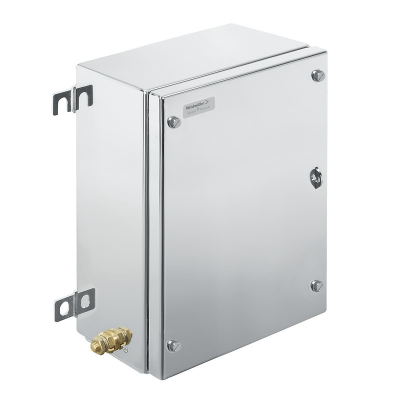

Metal housing, Width: 203 mm, Height: 306 mm, Depth: 150 mm, electropolished, Flange plate: Yes, Bottom, left, right, 4 hinges and M6 hex-head slotted screws SW10

Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.

4099986754805

Weidmueller Group

Yes

Mostrar vista comprimida (1 do produto)

Número de encomenda	8000108833
Shorttext	Metal housing, Width: 203 mm, Height: 306 mm, Depth: 150 mm, electropolished, Flange plate: Yes, Bottom, left, right, 4 hinges and M6 hex-head slotted screws SW10
Longtext	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Última alteração	13.06.2025 15:58:46
Unidade

Palavras-chave:

Classificações

CNS

CNSERPBASE Object Properties

Customs Tariff Number	94032080
Description long	Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
Description short	Metal housing, Width: 203 mm, Height: 306 mm, Depth: 150 mm, electropolished, Flange plate: Yes, Bottom, left, right, 4 hinges and M6 hex-head slotted screws SW10
GTIN-Code	4099986754805
Order Number	8000108833
Product website	https://eshop.weidmueller.com/p/8000108833
Use Case	https://eshop.weidmueller.com/p/8000108833

CNSPHYPROP Physical Properties

ECLASS 14.0

27-18-01-01 Fechamento (vazio)

Tipo de produto	KTB MH 302015 S4E3
GTIN	4099986754805
número do artigo de produto do fabricante	8000108833
Nome do fabricante	Weidmueller Group
Marca	Klippon^®
endereço da ligação adicional	https://eshop.weidmueller.com/p/8000108833
É possível a montagem no chão	No
Possibilidade de montagem na parede	Yes

ECLASS 13.0

27-18-01-01 Fechamento (vazio)

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KTB MH 302015 S4E3
GTIN	4099986754805
product article number of manufacturer	8000108833
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	0
address of additional link	https://eshop.weidmueller.com/p/8000108833
Color number according to RAL	7001
Degree of protection (NEMA)	NEMA 3
height	317
color	Silver
depth	165
material	stainless steel - 1.4404
Assembly on floor is possible	No
Wall assembly possible	Yes
width	284
Material	Stainless steel
Mounting plate present	No
Surface	Other
degree of protection	IP66

ECLASS 12.0

27-18-01-01 Fechamento (vazio)

suitable for outside installation	Yes
suitable for metric installation	Yes
ventilation door present	No
Mounting plate adjustable in depth	No
EMC design present	No
back door present	No
customs tariff number (TARIC)	94032080
impact strength	IK09
glazed door present	No
wall build in possible	Yes
Product type	KTB MH 302015 S4E3
GTIN	4099986754805
product article number of manufacturer	8000108833
Manufacturer name	Weidmueller Group
Brand	Klippon^®
Number of doors front	1
Number of locks	0
address of additional link	https://eshop.weidmueller.com/p/8000108833
Color number according to RAL	7001
Degree of protection (NEMA)	NEMA 3
height	317
color	Silver
depth	165
material	stainless steel - 1.4404
Assembly on floor is possible	No
Wall assembly possible	Yes
width	284
Material	Stainless steel
Mounting plate present	No
Surface	Other
degree of protection	IP66

ETIM 10.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor installation	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	0
RAL-number	7001
Degree of protection (NEMA)	NEMA 3
Height	317
Colour	Silver
Depth	165
Material	stainless steel - 1.4404
Width	284
Material quality	Stainless steel
With mounting plate	No
Surface finishing	Other
Degree of protection (IP)	IP66

ETIM 9.0

EC000261 Enclosure/cabinet (empty)

Suitable for outdoor set-up	Yes
Suitable for metrical mounting	Yes
With ventilation door	No
Mounting plate depth-adjustable	No
EMC-version	No
With rear door	No
Impact strength	IK09
With glazed door	No
Suitable for wall built-in	Yes
Number of doors	1
Number of locks	0
RAL-number	7001
Degree of protection (NEMA)	NEMA 3
Height	317
Colour	Silver
Depth	165
Material	stainless steel - 1.4404
Width	284
Material quality	Stainless steel
With mounting plate	No
Surface finishing	Other
Degree of protection (IP)	IP66

ETIM 8.0

EC000261 Enclosure/cabinet (empty)
