197053
1/5
Product number of the Manufacturer
MANUID
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Type Description
MANUTYPEDESC
Preview
PREVIEW
International product number
INTNO
BUYER_PID
Manufacturer Name
MANUNAME
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
EP-400186
CB Motor Protection 6,3..10A
CB Motor Protection 6,3..10A
PKZM0-10-SPI16/NHI-E-10-PKZ0-PI
4015082954161
Eaton
189889
Motor protective circuit-breaker, 3p, Ir= 6.3-10A, screw connection
Motor-protective circuit-breaker conforming to IEC/EN 60947, 3-pole PKZM01 frame size, with adjustable overload release and non-delayed short-circuit release, phase failure-sensitive, screw and snap fitting, with screw terminals, cap installation dimension of 45 mm, rated operating voltage Ue of 690 V, IP20 degree of protection, finger-safe as per VDE 0106 Part 100, available accessories: auxiliary contact module, voltage release
PKZM01-10-EA
04015081878857
189889
Eaton
EP-400132

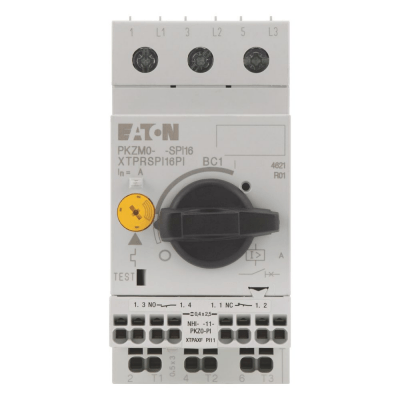

Motor-Protective Circuit-Breakers, 3-pole, Ir = 6 - 10 A, Push in terminals, rotary handle lockable, big pack
Motor-Protective Circuit-Breakers, 3-pole, Ir = 6 - 10 A, Push in terminals, rotary handle lockable, big pack
PKZM0-10-SPI16/AK-GVP2
4015082951603
Eaton
278484
Motor protective circuit-breaker, 3p, Ir=6.3-10A, screw connection
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM01, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release
PKZM01-10
04015082784843
278484
Eaton
EP-400164
Motor-Protective Circuit-Breakers, 3-pole, Ir = 6 - 10 A, Push in terminals, rotary handle lockable
Motor-Protective Circuit-Breakers, 3-pole, Ir = 6 - 10 A, Push in terminals, rotary handle lockable
PKZM0-10-SPI16/AK
4015082953782
Eaton
189885

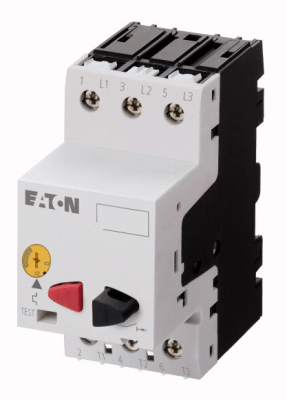

Motor protective circuit-breaker, 3p, Ir= 1-1.6A, screw connection
Motor-protective circuit-breaker conforming to IEC/EN 60947, 3-pole PKZM01 frame size, with adjustable overload release and non-delayed short-circuit release, phase failure-sensitive, screw and snap fitting, with screw terminals, cap installation dimension of 45 mm, rated operating voltage Ue of 690 V, IP20 degree of protection, finger-safe as per VDE 0106 Part 100, available accessories: auxiliary contact module, voltage release
PKZM01-1,6-EA
04015081878819
189885
Eaton
199186
Motor protective circuit-breaker, 3p, 4kW, Ir=6.3-10A, screw connection- /Push-in
Motor-protective circuit-breaker, IEC/EN 60947, VDE 0660, Overload releases = 6.3 - 10 A, max. 155 A, Switch off technique: Thermomagnetic, With thermal protection: Yes, Phase failure sensitive: Yes, Rated permanent current Iu = 10 A, Rated operation power at AC-3, 230 V = 2.2 kW, Rated operation power at AC-3, 400 V = 4 kW, Type of control element: Turn button, Number of poles: 3, Rated short-circuit breaking capacity lcu at 400 V, AC = 150 kA, Degree of protection: Device = IP20, Terminations = IP00, Ambient temperature: Storage = - 40 - 80 °C, Open = -25 - +55 °C, Direction of incoming supply as required
PKZM0-10-SPI16
04015081972708
199186
Eaton
278480

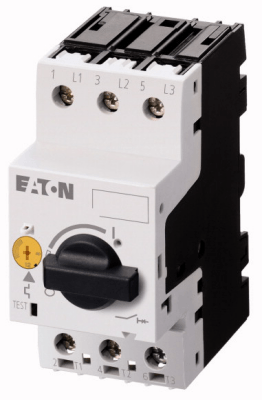

Motor protective circuit-breaker, 3p, Ir=1-1.6A, screw connection
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM01, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release
PKZM01-1,6
04015082784805
278480
Eaton
257061
Motor protective circuit-breaker, 3p+1N/O, Ir=6.3-10A, screw- /spring clamp connection, bulk package
Motor-protective circuit-breaker in environmentally friendly large packaging
PKZM0-10-SC/NHI-E-10-C-GVP
04015082570613
257061
Eaton
278479
Motor protective circuit-breaker, 3p, Ir=0.63-1A, screw connection
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM01, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release
PKZM01-1
04015082784799
278479
Eaton
197053

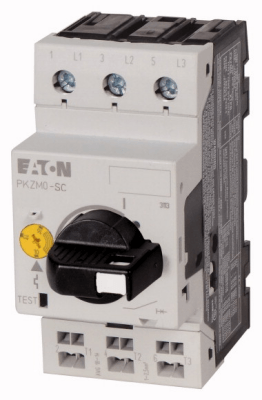

Motor protective circuit-breaker, 3p, Ir=6-10A, screw- /spring clamp connection, toggle lockable, bulk package
Motor-protective circuit-breakers; 3-pole; Ir = 6 - 10 A; screw/spring-clamp connection; thumb grip lockable
PKZM0-10-SC/AK-GVP2
04015080893615
197053
Eaton
265354
Motor protective circuit-breaker, 3p, Ir=6-10A, screw- /spring clamp connection, toggle lockable
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM0, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, Screw and snap fitting, With screw and spring-cage terminals and lockable thumb grip, Cap installation dimension 45mm, rated operating voltage Ue 690V, Degree of protection IP20, finger-proof in accordance with VDE 0106 Part 100, accessories: auxiliary contact, Voltage release, Contact module, Clip plate
PKZM0-10-SC/AK
04015082653545
265354
Eaton
229837

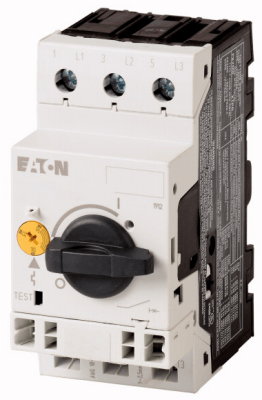

Motor protective circuit-breaker, 3p, Ir=6.3-10A, screw- /spring clamp connection
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM0, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, with screw and spring-cage terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release, contact module, clip plate
PKZM0-10-SC
04015082298371
229837
Eaton
199157

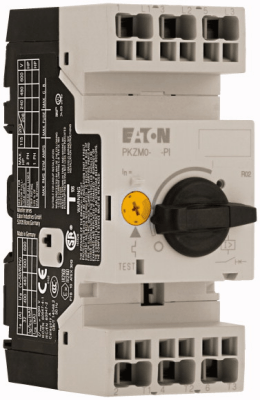

Motor protective circuit-breaker, 3p, 4kW, Ir=6.3-10A, Push-in
Motor-protective circuit-breaker, IEC/EN 60947, VDE 0660, Overload releases = 6.3 - 10 A, max. 155 A, Switch off technique: Thermomagnetic, With thermal protection: Yes, Phase failure sensitive: Yes, Rated permanent current Iu = 10 A, Rated operation power at AC-3, 230 V = 2.2 kW, Rated operation power at AC-3, 400 V = 4 kW, Type of control element: Turn button, Number of poles: 3, Rated short-circuit breaking capacity lcu at 400 V, AC = 150 kA, Degree of protection: Device = IP20, Terminations = IP20, Ambient temperature: Storage = - 40 - 80 °C, Open = -25 - +55 °C, Direction of incoming supply as required
PKZM0-10-PI
04015081972418
199157
Eaton
202744
Motor protective circuit-breaker, 3p, Ir=6.3-10A, screw connection, bulk package
Motor-protective circuit-breaker in environmentally friendly large packaging
PKZM0-10-GVP2
04015082027445
202744
Eaton
189882
Motor protective circuit-breaker, 3p, Ir= 0.25-0.4A, screw connection
Motor-protective circuit-breaker conforming to IEC/EN 60947, 3-pole PKZM01 frame size, with adjustable overload release and non-delayed short-circuit release, phase failure-sensitive, screw and snap fitting, with screw terminals, cap installation dimension of 45 mm, rated operating voltage Ue of 690 V, IP20 degree of protection, finger-safe as per VDE 0106 Part 100, available accessories: auxiliary contact module, voltage release
PKZM01-0,4-EA
04015081878789
189882
Eaton
189903

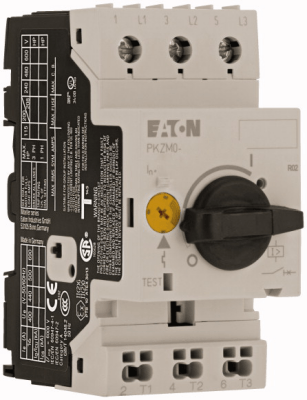

Motor protective circuit-breaker, 3p, Ir=6.3-10A, screw connection
Motor-protective circuit-breaker conforming to IEC/EN 60947, 3-pole PKZM0 frame size, with adjustable overload release and non-delayed short-circuit release, phase failure-sensitive, screw and snap fitting, with screw terminals, cap installation dimension of 45 mm, rated operating voltage Ue of 690 V, IP20 degree of protection, finger-safe as per VDE 0106 Part 100, available accessories: auxiliary contact module, voltage release, contact module, clip plate
PKZM0-10-EA
04015081878994
189903
Eaton
265335

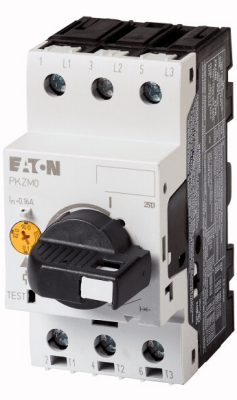

Motor protective circuit-breaker, 3p, Ir=0.63-1A, toggle lockable
Motor-protective circuit-breaker with lockable rotary handle to IEC/EN60947, 3 pole size PKZM0, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, with screw terminal, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release, contact module, clip plate
PKZM0-1/AK
04015082653354
265335
Eaton
278477
Motor protective circuit-breaker, 3p, Ir=0.25-0.4A, screw connection
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM01, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release
PKZM01-0,4
04015082784775
278477
Eaton
Eaton eCAD - 01

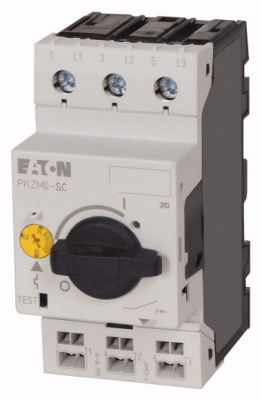

| Идентификационный номер | 197053 |
| Сокращенный текст | Motor protective circuit-breaker, 3p, Ir=6-10A, screw- /spring clamp connection, toggle lockable, bulk package |
| Полный текст | Motor-protective circuit-breakers; 3-pole; Ir = 6 - 10 A; screw/spring-clamp connection; thumb grip lockable |
| Последнее изменение | 14.10.2024 10:25:05 |
| Единица |
