016020699

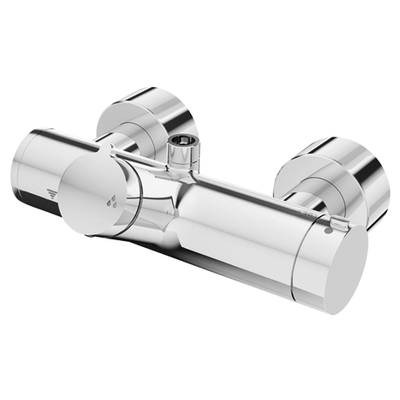

Aufputz-Duscharmatur VITUS VD-Auf/Zu-T / o

Aufputz-Duscharmatur VITUS VD-T /o, Auf/Zu,Therm.,man. TD , Anschl. ob., chrom

Exposed shower tap VITUS VD open/close-T / o, Mixed water, Thermostat, Open/Closed, 2 Backflow preventer, Thermal disinfection, 2x DN 15 G 1/2 AG, DN 15 G 1/2 AG (top), Chrome

016070699

4021163159059

350

Exposed shower tap VITUS VD open/close-T / o Mixed water, ThermoProtect thermostat Manual open/closed actuation. Shower connection at top. Scope of delivery Open/closed exposed shower tap Operating button open/close ThermoProtect thermostat, conform to EN 1111, unlockable/lockable temperature lock at 38 °C, anti-scalding protection if cold water supply fails Open/closed ceramic cartridge Valve (mechanical) for thermal disinfection (according to DVGW worksheet W 551) 2 backflow preventers (EN 1717: EB-type) 2 S-connections and rosettes (depth-adjustable) Technical data Max. operating temperature: 70 °C (80 °C for thermal disinfection) Material: Housing Brass, conform to German drinking water regulations Surface: Chrome Connection: 2x DN 15 G 1/2 AG Outlet: DN 15 G 1/2 AG (top) Certificates: PA-IX 38240/IB, ACS, Belgaqua Noise class: I Flow class: B - 016070699
