3SEC6E35-2X/G24N9K4
1/5
Order number
CNSORDERNO
Material number
MN
Number of main ports
P
Type of valve
TOV
Size
S

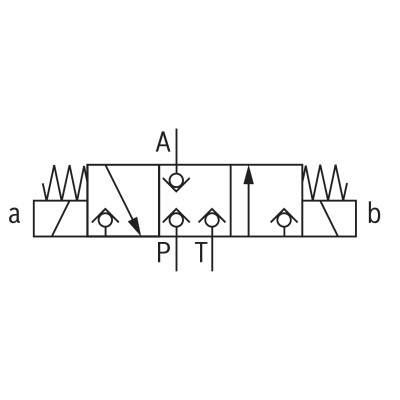

Symbols
SS
Component series
CS
Direct voltage
V [V]
Manual override
M
Electrical connection
EC
Check valve insert
CV
Seal material
SM
Datasheet
RNR
1
3SEC6E35-2X/G24N9K4
R901509298
3: 3 main ports
SEC: Seat valve
6: Size 6
2X: Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions)
G24: Direct voltage 24 V
N9: With concealed manual override
K4: Connector 3-pole (2 + PE) according to DIN EN 175301-803
Without check valve insert, without screw-in throttle
NBR seals
RE22028
Bosch Rexroth - SEC6
| 訂購編碼 | R901509298 |
| Shorttext | Directional seat valves, direct operated, with solenoid actuation |
| 上次修改 | 01.08.2025 12:28:21 |
