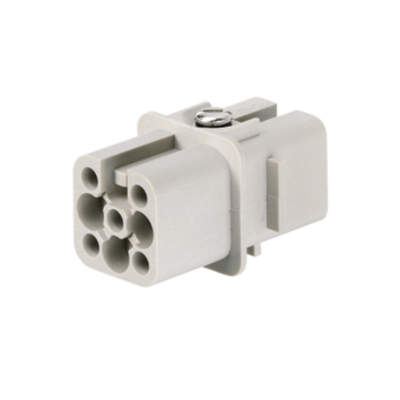

1650580000 - HDC HD 7 FC

1650580000 - HDC HD 7 FC

Weidmueller 1650580000

Expand Table

1/5

Preview

PREVIEW

Manufacturer Product ID

MANUID

Manufacturer Type Description

MANUTYPEDESC

Description short

DESCSHORT

Description long

DESCLONG

GTIN-Code

GTIN

Manufacturer / brand name

MANUNAME

额定电流

AAF726 [A]

无触点的接触式插头

AAB755

污染度

BAA295

固定最大导体横截面

BAC677 [mm²]

移动最大导体横截面

BAC676 [mm²]

最高环境温度

BAA039 [°C]

固定最小导体横截面

BAC740 [mm²]

最大连接导体截面积（多股线）

AAB789 [mm²]

触点设计

AAB754

1650580000

HDC HD 7 FC

触点插芯（工业插拔式连接器）, 插座, 250 V, 10 A, 回路数: 7, 冷压联接, 安装尺寸: 1

用于工业插拔式联接器的插芯，包括接触元件和绝缘体。

4008190299255

Weidmueller Group

是

2.500

125

0.500

2.500

插座

顯示壓縮表示形式(1 Produkt)

訂購編碼	1650580000
Shorttext	触点插芯（工业插拔式连接器）, 插座, 250 V, 10 A, 回路数: 7, 冷压联接, 安装尺寸: 1
Longtext	用于工业插拔式联接器的插芯，包括接触元件和绝缘体。
上次修改	12.12.2025 12:30:02
單位

关键字

分類

CNS

CNSERPBASE Object Properties

Description long	用于工业插拔式联接器的插芯，包括接触元件和绝缘体。
Description short	触点插芯（工业插拔式连接器）, 插座, 250 V, 10 A, 回路数: 7, 冷压联接, 安装尺寸: 1
GTIN-Code	4008190299255
Order Number	1650580000
Product website	https://eshop.weidmueller.com/p/1650580000
Type Code	HDC HD 7 FC
Use Case	https://eshop.weidmueller.com/p/1650580000

CNSPHYPROP Physical Properties

ECLASS 15.0

27-44-02-05 Contact insert for industrial connectors

Rated surge voltage	4
Contact design	插座
Contact insert without contact	是
max. connectable conductor cross-section multiple wire	2.500
min. connectable conductor cross-section multiple wire	0.140
PE connection present	是
Material of the contact	其它铜合金
Min. operating temperature	-40
Max. operating temperature	125
rated current	10
Product type	HDC HD 7 FC
GTIN (EAN) code	4008190299255
Internal article number	1650580000
Manufacturer name	Weidmueller Group
Brand	RockStar^®
address of additional link	https://eshop.weidmueller.com/p/1650580000
Conductor connection method	卷曲连接
Pole number	7
Manufacturer product description	触点插芯（工业插拔式连接器）, 插座, 250 V, 10 A, 回路数: 7, 冷压联接, 安装尺寸: 1
Manufacturer product designation	触点插芯（工业插拔式连接器）
Customs tariff number	85472000
Type of customs tariff number	塔里克
min. ambient temperature	-40
height	21.009
max. ambient temperature	125
Degree of soiling	3
depth	33.3
flammability rating of the insulating material (based on UL 94)	V0
Max. line cross section, flexible	2.500
Max. line cross section, rigid	2.500
Min. line cross section, flexible	0.500
Min. line cross section, rigid	0.500
width	20.95
rated voltage	250
