PHOENIX CONTACT

Electric engineering, automation, process control engineering

Terminal block systems and system components

Hybrid terminal blocks

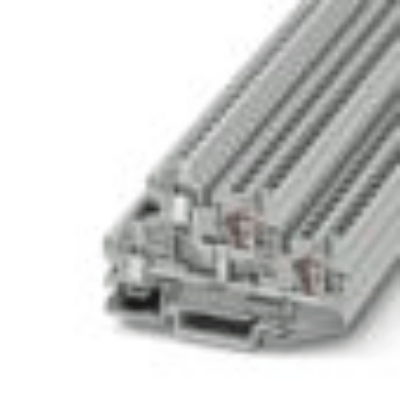

Hybrid terminal block

3033184 - STTBU 4-PV

PHOENIX CONTACT

...

Hybrid terminal blocks

Hybrid terminal block

3033184 - STTBU 4-PV

PHOENIX CONTACT 3033184

Expand Table

1/5

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

width

BAF016 [mm]

height

BAA020 [mm]

3033184

STTBU 4-PV

Double-level terminal block

Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Phoenix Contact GmbH & Co. KG

4046356148177

6.220308

80.94641

Vis komprimeret visning (1 produkt)

Order number	3033184
Shorttext	Double-level terminal block
Longtext	Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Sidste ændring	24.01.2025 18:25:04
Enhed

Nøgleord

Klassifikationer

CNS

CNSERPBASE Object Properties

Description long	Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Description short	Double-level terminal block
GTIN-Code	4046356148177
Order Number	3033184

CNSPHYPROP Physical Properties

ECLASS 14.0

27-25-02-01 Hybrid terminal block

bridge shaft available	Yes
Product type	STTBU 4-PV
GTIN	4046356148177
product article number of manufacturer	3033184
Manufacturer name	Phoenix Contact GmbH & Co. KG
number of clamping points	2
Number of levels	2
address of additional link	http://www.phoenixcontact.com/product/3033184
Power loss per pole, current-dependent [PlIp]	1.020
Manufacturer product description	Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Manufacturer product designation	Double-level terminal block
Rated voltage (at DC)	500
GLN of manufacturer	4063151
hybrid connection technology available	Yes
rated voltage (at AC)	500
rated current at nominal cross-section [In]	30
rated current at max. conductor cross-section [In	36
type of actuation (1)	Spring-cage connection
type of actuation (2)	Screw connection
hybrid type of actuation available	Yes
height	80.94641
color	gray
depth	55.5
Connection type (1)	spring-cage connection
flammability rating of the insulating material (based on UL 94)	V0
Connection type 2	Screw connection
material of insulation	PA
Levels internally bridged	Yes
Closing plate required	Yes
width	6.220308
Assembly type	Top-hat rail TH35

ECLASS 13.0

27-25-02-01 Hybrid terminal block

bridge shaft available	Yes
Product type	STTBU 4-PV
GTIN	4046356148177
product article number of manufacturer	3033184
Manufacturer name	Phoenix Contact GmbH & Co. KG
number of clamping points	2
Number of levels	2
address of additional link	http://www.phoenixcontact.com/product/3033184
Power loss per pole, current-dependent [PlIp]	1.020
Manufacturer product description	Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Manufacturer product designation	Double-level terminal block
Rated voltage (at DC)	500
GLN of manufacturer	4063151
hybrid connection technology available	Yes
rated voltage (at AC)	500
rated current at nominal cross-section [In]	30
rated current at max. conductor cross-section [In	36
type of actuation (1)	Spring-cage connection
type of actuation (2)	Screw connection
hybrid type of actuation available	Yes
height	80.94641
color	gray
depth	55.5
Connection type (1)	spring-cage connection
flammability rating of the insulating material (based on UL 94)	V0
Connection type 2	Screw connection
material of insulation	PA
Levels internally bridged	Yes
Closing plate required	Yes
width	6.220308
Assembly type	Top-hat rail TH35
