6834030
1/5
PREVIEW

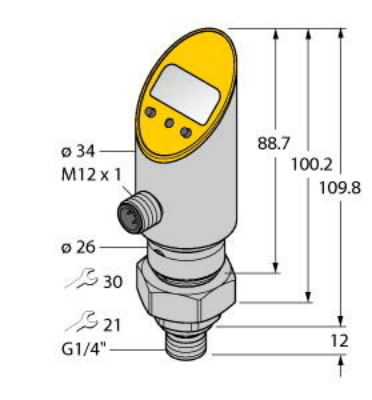

Dimension drawing
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Packaging quantity
NO_CU_PER_OU
Deeplink
DEEPLINK
1
6834030
Pressure Sensor (Rotatable), With Analog Output and PNP/NPN Transistor Switching
Pressure Sensor (Rotatable), With Analog Output and PNP/NPN Transistor Switching Output, Output 2 Reprogrammable as Switching Output, Operating voltage 18…30 VDC, Housing is rotatable after plugging the process connection, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…10 bar rel., ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22
4047101377392
Turck
PS010V-504-LI2UPN8X-H1141/3GD
1
Deeplink
Turck - 6834030
| Order number | 6834030 |
| Shorttext | Pressure Sensor (Rotatable), With Analog Output and PNP/NPN Transistor Switching |
| Latest change | 25.01.2024 12:12:47 |
| Unit |
Classifications
