DP2.5SGQK01
1/5
Preview
PREVIEW
Name
NAME
Product Category
PTCY
Pitch
PH [mm]
Color
CR
Connection method
CNMD
Length
LH [mm]
Width
WH [mm]
Height
HH [mm]
Circuit diagram
CTDM
Number of poles
NROFPS
Level
LL
Connection points
CNPS
Insulating material
IGML
Insulating material group
IGMLGP
UL94 Flammability rating
UL94FR
Insulation resistance
INRE
Conductor material
CRML
1

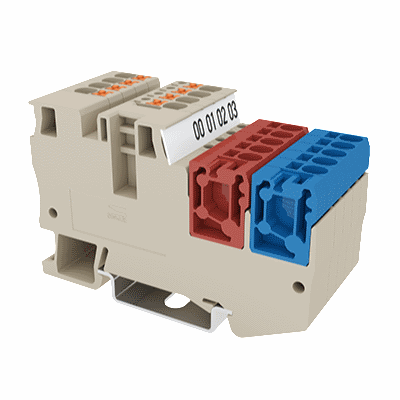

DP2.5SGQK01
Sensor Terminal Block
5.08
BEIGE (default)
Push-in Design
30.5
68.5
45(TS-35N)/52.5(TS-35/15N)
4
04P
1
8
PA66
I
V0
≥500MΩ at DC 500V
COPPER ALLOY
DINKLE - DP2.5SGQK01
| Order number | DP2.5SGQK01 |
| Shorttext | Sensor Terminal Block,Push-in Design,Width:5.08mm,600V,20A |
| Latest change | 04.12.2024 09:22:10 |
| Unit |
