Gate valves

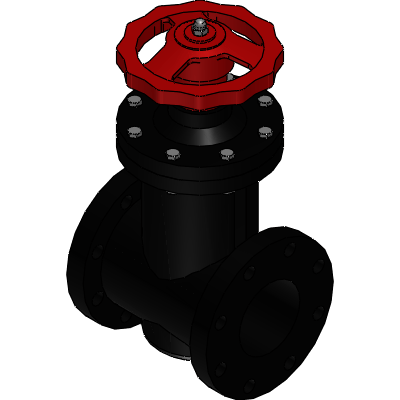

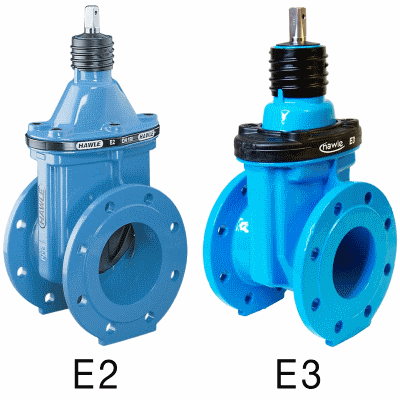

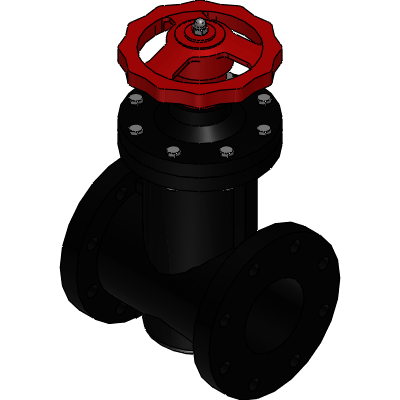

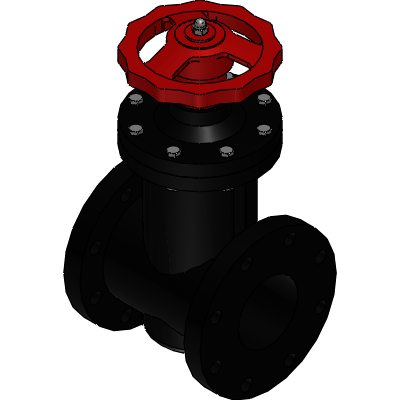

Gate valves are critical in piping systems for full open or close operations, featuring a gate or wedge-shaped disc that moves between sealing surfaces to control fluid flow. They are used to either allow or block the flow of liquids and gases and are ideal for applications requiring a straight-line flow with minimal restriction. However, they are unsuitable for flow regulation or throttling due to potential wear on the sealing surfaces. Manufactured according to standards such as API 600, ISO 5208, EN 13709, and ASME B16.34, gate valves ensure reliability and compatibility across various systems. Well-known manufacturers like Düker, Wilo and KSB, as well as other leading manufacturers, offer their 3D CAD models on 3Dfindit, including gate valves. Download free models directly for precise design and seamless integration into your projects.
