LV947603SP

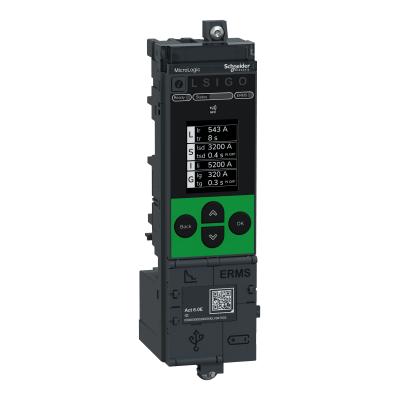

MicroLogic Active 6.0E control unit, no wireless, MasterPacT MTZ1/MTZ2/MTZ3 circuit breakers, LSIG, spare part

This device is a MicroLogic Active 6.0E electronic control unit for MasterPacT MTZ last generation of high current air circuit breakers. This control unit is compatible with MasterPacT MTZ1/MTZ2/MTZ3 circuit breakers in fixed or drawout version. MasterPacT MTZ Active combines real-time information and ease of use to enable fast mitigation of outage events. MasterPacT MTZ Active is designed to achieve new levels of uptime and agility. MicroLogic 6.0E Active is a LSIG protection type control unit that offers 4 basic protection functions and some advanced protections. Basic protections are long time protection against overloads (L), short time protection (S) and instantaneous protection (I) against short-circuits, ground fault protection (G). MicroLogic 6.0E Active measures energy and power, as well as true rms values of currents. Diagnostic features are intended to limit the risk of power interruptions and to power up the installation as quickly as possible after a trip. MicroLogic Active provides alarms and messages to help the user in scheduling both preventive and predictive maintenance, as well as device replacement. MicroLogic Active has an ergonomic HMI with coloured backlight, status LEDs and a friendly navigation interface. MicroLogic 6.0E Active control units incorporate wired communication including Ethernet and Modbus SL. MicroLogic Active is equipped with NFC connectivity which provides remote access via a smartphone and the EcoStruxure Power Device application. MasterPacT MTZ Active circuit breakers are part of the Active Panel solution made possible by Schneider Electric’s EcoStruxure Power architecture. Green packaging eliminates single-use plastics and features 100% recycled and recyclable cardboard. Transformer efficiency data helps inform actions to save energy and reduce CO2 emissions.

3606486818879

LV947603SP

Schneider Electric

LV947603SP

electronic release
