PHOENIX CONTACT

Electric engineering, automation, process control engineering

Connector system

Connector component

Shell for rectangular connectors

1407627 - HC-EVO-B10-HHFS-PLBK

PHOENIX CONTACT

...

Connector component

Shell for rectangular connectors

1407627 - HC-EVO-B10-HHFS-PLBK

PHOENIX CONTACT 1407627

Expand Table

1/5

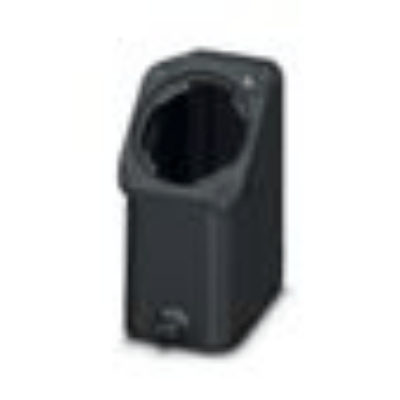

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

width

BAF016 [mm]

1407627

HC-EVO-B10-HHFS-PLBK

Housing

Sleeve housing B10, for single locking latch, material: PA 6.6-FR, cable outlets: 1, straight/lateral, height: 87.5 mm, cable gland: none, Standard

Phoenix Contact GmbH & Co. KG

4046356776899

IP66

Näytä pakattu näkymä (1 tuote)

Tilausnumero	1407627
Shorttext	Housing
Longtext	Sleeve housing B10, for single locking latch, material: PA 6.6-FR, cable outlets: 1, straight/lateral, height: 87.5 mm, cable gland: none, Standard
Viimeisin muutos	24.01.2025 18:43:48
Yksikkö

Avainsanat

Luokitukset

CNS

CNSERPBASE Object Properties

Description long	Sleeve housing B10, for single locking latch, material: PA 6.6-FR, cable outlets: 1, straight/lateral, height: 87.5 mm, cable gland: none, Standard
Description short	Housing
GTIN-Code	4046356776899
Order Number	1407627

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 Suorakulmaisten liittimien kotelo

Kotelon pinnan suunnittelu	Not applicable
Tuotetyyppi	HC-EVO-B10-HHFS-PLBK
GTIN	4046356776899
tuotteen valmistajan tuotenumero	1407627
Valmistajan nimi	Phoenix Contact GmbH & Co. KG
kaapelien sisäänmenoaukkojen lukumäärä	1
Sovellusstandardit	not available
lisälinkin osoite	http://www.phoenixcontact.com/product/1407627
Liitäntäkierteen koko	Bayonet B plastic
Koko	B10
Valmistajan tuotekuvaus	HEAVYCON EVO sleeve housing, plastic, with bayonet flange for EVO screw connection, B10, for single locking latch, height: 87.5 mm, without EVO screw connection
Valmistajan tuotenimike	Housing
Valmistajan GLN	4063151
väri	black
todistus/hyväksyntä	cULus Recognized, EAC, DNV

ECLASS 13.0

27-44-02-02 Suorakulmaisten liittimien kotelo

Type of interlock	Longitudinal strap
Design of housing surface	Not applicable
Design of housing	Sleeve housing
seal present	Yes
screwed cable gland present	No
Degree of protection (IP), mounted	IP66
EMC design present	No
Min. operating temperature	-40
Max. operating temperature	125
impact strength	IK08
shackle position	without
Product type	HC-EVO-B10-HHFS-PLBK
GTIN	4046356776899
product article number of manufacturer	1407627
Manufacturer name	Phoenix Contact GmbH & Co. KG
number of cable inlets	1
Application standards	not available
address of additional link	http://www.phoenixcontact.com/product/1407627
Corrosion resistance	yes
Size of connection thread	Bayonet B plastic
Size	B10
Mounting method of the cable gland	Bayonet
Support present	No
Manufacturer product description	HEAVYCON EVO sleeve housing, plastic, with bayonet flange for EVO screw connection, B10, for single locking latch, height: 87.5 mm, without EVO screw connection
Manufacturer product designation	Housing
GLN of manufacturer	4063151
height	88.7
color of housing	black
color	black
certificate/approval	cULus Recognized, EAC, DNV
depth	73
flammability rating of the insulating material (based on UL 94)	not relevant
material of housing	Polyamide (PA)
Flap cover present	No
width	49
UV-resistant	No

ETIM 10.0

EC000437 Housing for rectangular connectors

Type of locking	Longitudinal strap
Type of housing	Sleeve housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP66
EMC-version	No
Operating temperature	-40
Impact strength	IK08
Position of the shackle	without
Corrosion resistant	yes
Mounting method of the cable gland	Bayonet
With distance piece	No
Height	88.7
Housing colour	black
Depth	73
Housing material	Polyamide (PA)
With hinged lid	No
Width	49

ETIM 9.0

EC000437 Housing for rectangular connectors

Type of locking	Longitudinal strap
Type of housing	Sleeve housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP66
EMC-version	No
Operating temperature	-40
Impact strength	IK08
Position of the shackle	without
Corrosion resistant	yes
Mounting method of the cable gland	Bayonet
With distance piece	No
Height	88.7
Housing colour	black
Depth	73
Inflammability class of insulation material according to with UL94	not relevant
Housing material	Polyamide (PA)
With hinged lid	No
Width	49
UV resistant	No
