IFKM110050w
1/5
Manufacturer
FIRMA
Article Number
ARTNR
Description short text
DESCSHORT
Field of use
AW
Fire resistance class
FK
LOD Level
LODLEVEL
Preview picture
VORSCHAUBILD
Styrofoam cover
COVER
External height (HA)
HA [mm]
1
2
3
4
5
6
7
8
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKM105050v

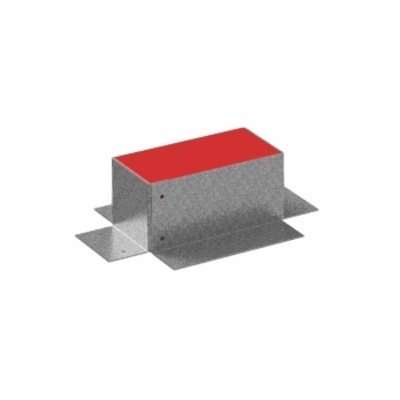

Instafix® BKI cable version with Mifa bulkhead, 1 set, 50x50x50mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
53.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKM105050w

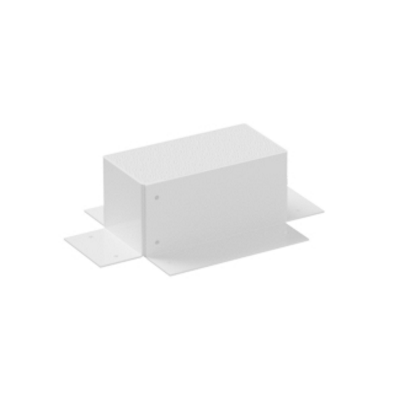

Instafix® BKI cable version with Mifa bulkhead, 1 set, 50x50x50mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
53.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKM110050v

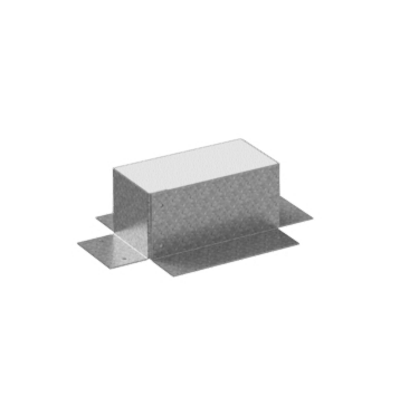

Instafix® BKI cable version with Mifa bulkhead, 1 set, 100x50x50mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
103.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKM110050w
Instafix® BKI cable version with Mifa bulkhead, 1 set, 100x50x50mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
103.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKS105050v
Instafix® BKI cable version with BS stone, 1 set, 50x50x50mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
53.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKS105050w
Instafix® BKI cable version with BS stone, 1 set, 50x50x50mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
53.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKS110050v
Instafix® BKI cable version with BS stone, 1 set, 100x50x50mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
103.2
Wichmann Brandschutzsysteme GmbH & Co. KG
IFKS110050w
Instafix® BKI cable version with BS stone, 1 set, 100x50x50mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
representation with
103.2
Wichmann - Cable version
| Order number | IFKM110050w |
| Shorttext | Electrical installation duct |
| Perubahan terakhir | 07.05.2024 09:49:22 |
| Unit |
