DK4N-TG
1/5
Preview
PREVIEW
Name
NAME
Product Category
PTCY
Pitch
PH [mm]
Color
CR
Connection method
CNMD
Length
LH [mm]
Width
WH [mm]
Height
HH [mm]
Circuit diagram
CTDM
Level
LL
Connection points
CNPS
Insulating material
IGML
Insulating material group
IGMLGP
UL94 Flammability rating
UL94FR
Insulation resistance
INRE
Conductor material
CRML
Plating of conductor surface
POCS
1

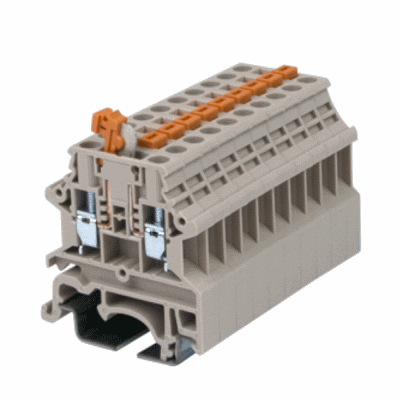

DK4N-TG
Disconnect Terminal Block
6.10
BEIGE (default)
Screw Connection
40.7
6.1
43.4(TS-35N)/50.9(TS-35/15N)
1
1
2
PA66
I
V0
≥500MΩ at DC 500V
COPPER ALLOY
Tin PLATED
DINKLE - DK4N-TG
| Order number | DK4N-TG |
| Shorttext | Disconnect Terminal Block,Screw Connection,Width:6.10mm,M3,300V,30A |
| Perubahan terakhir | 28.12.2024 12:00:51 |
| Unit |
