DKK2.5N-T
1/5
Preview
PREVIEW
Name
NAME
Product Category
PTCY
Pitch
PH [mm]
Color
CR
Connection method
CNMD
Length
LH [mm]
Width
WH [mm]
Height
HH [mm]
Circuit diagram
CTDM
Level
LL
Connection points
CNPS
Insulating material
IGML
Insulating material group
IGMLGP
UL94 Flammability rating
UL94FR
Insulation resistance
INRE
Conductor material
CRML
Plating of conductor surface
POCS
1
DKK2.5N-T
Disconnect Terminal Block
5.10
BEIGE (default)
Screw Connection
71.5
5.1
63(TS-35N)/70.5(TS-35/15N)
2
2
4
PA66
I
V0
≥500MΩ at DC 500V
COPPER ALLOY
Tin PLATED

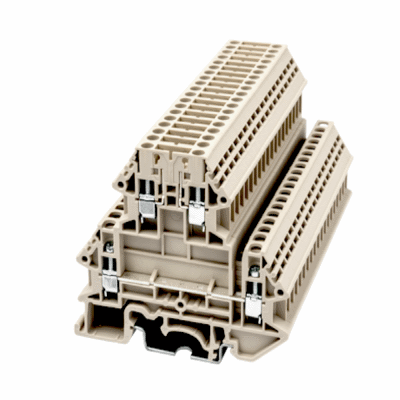

DINKLE - DKK2.5N-T
| Order number | DKK2.5N-T |
| Shorttext | Disconnect Terminal Block,Screw Connection,Width:5.10mm,M2.5,300V,20A |
| Perubahan terakhir | 28.12.2024 12:00:51 |
| Unit |
