DP2.5N-CP
1/5
Preview
PREVIEW
Name
NAME
Product Category
PTCY
Pitch
PH [mm]
Color
CR
Connection method
CNMD
Length
LH [mm]
Width
WH [mm]
Height
HH [mm]
Circuit diagram
CTDM
Level
LL
Connection points
CNPS
Insulating material
IGML
Insulating material group
IGMLGP
UL94 Flammability rating
UL94FR
Insulation resistance
INRE
Conductor material
CRML
Plating of conductor surface
POCS
1

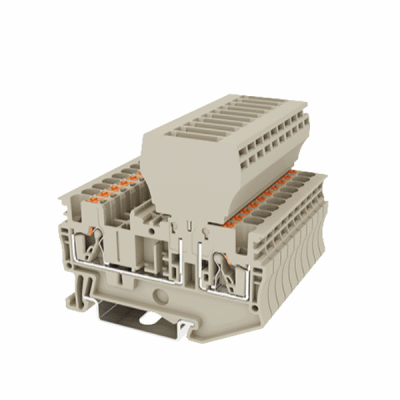

DP2.5N-CP
Disconnect Terminal Block
5.10
BEIGE (default)
Push-in Design
61.7
5.1
58.1(TS-35N).65.6(TS-35/15N)
1
1
2
PA66
I
V0
≥500MΩ at DC 500V
HIGH PERFORMANCE COPPER ALLOY
Tin PLATED
DINKLE - DP2.5N-CP
| Order number | DP2.5N-CP |
| Shorttext | Disconnect Terminal Block,Push-in Design,Width:5.10mm,300V,6A |
| Perubahan terakhir | 28.12.2024 12:00:43 |
| Unit |
