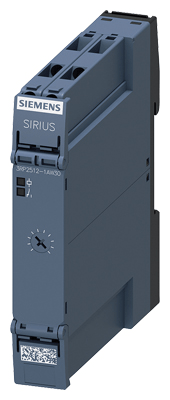

3RP25121AW30
1/5
PREVIEW
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Alternative product number
SUPPLIERALTNO
Product number of the Manufacturer
MANUID
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
clocking with pulse starting, variable
BAD607
1
Timing relay, ON-delay, 1 CO, 1 time ranges, 1.5-30s, 12-240 V AC/DC
Timing relay, electronic slow-operating 1 change-over contact, 1 time range 1.5...30 s 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more. Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies. The 3RP25 timing relays replace the well-proven 3RP15 series. SIRIUS relays - one range for every application.
887621914929
3RP2512-1AW30
3RP25121AW30
Siemens
T-REL. DELAYED 1CO CONT. 12-240V AC/DC
No
SIEMENS - 3RP25121AW30
| オーダー番号 | 3RP25121AW30 |
| ショートテキスト | Timing relay, ON-delay, 1 CO, 1 time ranges, 1.5-30s, 12-240 V AC/DC |
| 長文 | Timing relay, electronic slow-operating 1 change-over contact, 1 time range 1.5...30 s 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more. Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies. The 3RP25 timing relays replace the well-proven 3RP15 series. SIRIUS relays - one range for every application. |
| 最終更新日 | 29.01.2026 19:00:28 |
| 単位 |
