PHOENIX CONTACT

Electric engineering, automation, process control engineering

Connector system

Connector component

Shell for rectangular connectors

1082566 - HC-STA-B06-SHWS-2SSM40-ELC-AL

PHOENIX CONTACT

...

Connector component

Shell for rectangular connectors

1082566 - HC-STA-B06-SHWS-2SSM40-ELC-AL

PHOENIX CONTACT 1082566

Expand Table

1/5

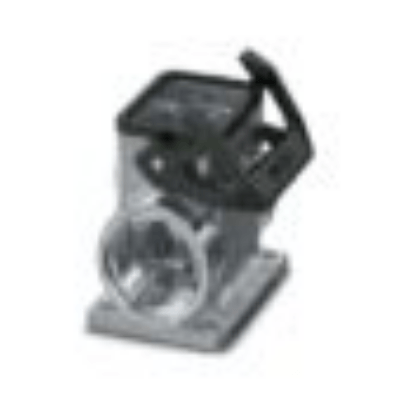

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

width

BAF016 [mm]

1082566

HC-STA-B06-SHWS-2SSM40-ELC-AL

Housing

Surface mounting housing B6, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 2, lateral, 2x M40, height: 74.8 mm, cable gland: none, Standard

Phoenix Contact GmbH & Co. KG

4055626816135

IP66

67.100006

Mostrar vista comprimida (1 do produto)

Número de encomenda	1082566
Shorttext	Housing
Longtext	Surface mounting housing B6, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 2, lateral, 2x M40, height: 74.8 mm, cable gland: none, Standard
Última alteração	24.01.2025 18:43:44
Unidade

Palavras-chave:

Classificações

CNS

CNSERPBASE Object Properties

Description long	Surface mounting housing B6, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 2, lateral, 2x M40, height: 74.8 mm, cable gland: none, Standard
Description short	Housing
GTIN-Code	4055626816135
Order Number	1082566

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 Caixa para conectores rectangulares

Conceção da superfície da habitação	Uncoated
Tipo de produto	HC-STA-B06-SHWS-2SSM40-ELC-AL
GTIN	4055626816135
número do artigo de produto do fabricante	1082566
Nome do fabricante	Phoenix Contact GmbH & Co. KG
número de entradas de cabos	2
Normas de aplicação	not available
endereço da ligação adicional	http://www.phoenixcontact.com/product/1082566
Tamanho da rosca de ligação	M40
Tamanho	B6
Descrição do produto do fabricante	Surface mounting housing B6, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 2, lateral, 2x M40, height: 74.8 mm, cable gland: none, Standard
Designação do produto do fabricante	Housing
GLN do fabricante	4063151
cor	aluminum
certificado/aprovação	cULus Recognized, EAC, DNV

ECLASS 13.0

27-44-02-02 Caixa para conectores rectangulares

Arrangement of the cable lead-in	lateral
Type of interlock	Longitudinal strap
Design of housing surface	Uncoated
Design of housing	Socket housing
seal present	Yes
screwed cable gland present	No
Degree of protection (IP), mounted	IP66
EMC design present	Yes
Min. operating temperature	-40
Max. operating temperature	125
impact strength	IK08
shackle position	top section
Product type	HC-STA-B06-SHWS-2SSM40-ELC-AL
GTIN	4055626816135
product article number of manufacturer	1082566
Manufacturer name	Phoenix Contact GmbH & Co. KG
number of cable inlets	2
Application standards	not available
address of additional link	http://www.phoenixcontact.com/product/1082566
Corrosion resistance	yes
Size of connection thread	M40
Size	B6
Mounting method of the cable gland	metric
Support present	No
Manufacturer product description	Surface mounting housing B6, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 2, lateral, 2x M40, height: 74.8 mm, cable gland: none, Standard
Manufacturer product designation	Housing
GLN of manufacturer	4063151
height	91.620154
color of housing	gray aluminum
color	aluminum
certificate/approval	cULus Recognized, EAC, DNV
depth	84
flammability rating of the insulating material (based on UL 94)	not relevant
material of housing	aluminium die-cast
Flap cover present	No
width	67.100006
UV-resistant	No

ETIM 10.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Longitudinal strap
Type of housing	Socket housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP66
EMC-version	Yes
Operating temperature	-40
Impact strength	IK08
Position of the shackle	top section
Corrosion resistant	yes
Mounting method of the cable gland	metric
With distance piece	No
Height	91.620154
Housing colour	gray aluminum
Depth	84
Housing material	aluminium die-cast
With hinged lid	No
Width	67.100006

ETIM 9.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Longitudinal strap
Type of housing	Socket housing
With sealing	Yes
With cable screw gland	No
Degree of protection (IP), mounted	IP66
EMC-version	Yes
Operating temperature	-40
Impact strength	IK08
Position of the shackle	top section
Corrosion resistant	yes
Mounting method of the cable gland	metric
With distance piece	No
Height	91.620154
Housing colour	gray aluminum
Depth	84
Inflammability class of insulation material according to with UL94	not relevant
Housing material	aluminium die-cast
With hinged lid	No
Width	67.100006
UV resistant	No
