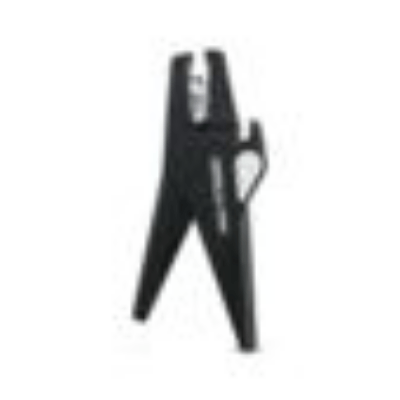

PHOENIX CONTACT 1207637

Expand Table
Produktbild
PREVIEW
Artikelnummer des Herstellers
MANUID
Herstellertypbezeichnung
MANUTYPEDESC
Kurzbeschreibung
DESCSHORT
Langbeschreibung
DESCLONG
Internationale Artikelnummer
INTNO
Name des Herstellers
MANUNAME
Isolation vorhanden
BAD383
VDE-geprüft
AAG615
ESD-geprüft
AAG794
Aufprallschutz vorhanden
AAL858
Schutzisolierung (1000 V) vorhanden
AAM090
1
1207637
QUICK WIREFOX 6 SC
Abisolierzange
Abisolierzange, Querschnitt min.: 0,2 mm², Querschnitt max.: 6 mm², Gewicht 205 g, schwarz
4017918910136
Phoenix Contact GmbH & Co. KG
Nein
Nein
Nein
Ja
Nein
Mostrar vista comprimida (1 do produto)
Informações sobre a peça
Acessórios
Request for quote (RFQ)
ECLASS 13.0 - 1207637
Número de encomenda1207637
ShorttextAbisolierzange
LongtextAbisolierzange, Querschnitt min.: 0,2 mm², Querschnitt max.: 6 mm², Gewicht 205 g, schwarz
Última alteração05.06.2026 18:23:16
Unidade

Classificações

CNS

CNSERPBASE Object Properties
Customs Tariff Number82032000
Description longAbisolierzange, Querschnitt min.: 0,2 mm², Querschnitt max.: 6 mm², Gewicht 205 g, schwarz
Description shortAbisolierzange
GTIN-Code4017918910136
Order Number1207637

ECLASS 14.0

21-04-37-06 Alicate descascador de fios
diâmetro mínimo da tira (AWG)16
chaveamento automáticoJa
Tipo de produtoQUICK WIREFOX 6 SC
GTIN4017918910136
número do artigo de produto do fabricante1207637
Nome do fabricantePhoenix Contact GmbH & Co. KG
endereço da ligação adicionalhttp://www.phoenixcontact.com/product/1207637
Descrição do produto do fabricanteAbisolierzange für kurzschlussfeste Leitungen, Abisolierbereich: 1,5 bis 6 mm², Drahtschneiden bis 6 mm², Kabelstopper bis 18 mm²
Designação do produto do fabricanteAbisolierzange
GLN do fabricante4063151
URI do fabricantewww.phoenixcontact.com
URI do produtohttp://www.phoenixcontact.com/product/1207637
Secção transversal máxima6 mm^2
Secção transversal mínima0.200 mm^2
Peso líquido205 g
largura da cabeça sobre tudo17 mm

ECLASS 13.0

21-04-37-06 Wire stripper pliers
VDE testedNein
grip casingKunststoffhüllen
ESD provedNein
jaw length6 mm
head width17 mm
min. strip diameter (AWG)16
max. strip range (diameter)2.900 mm
min. strip range (diameter)0.500 mm
max. strip range (cross-section)6 mm^2
min. strip range (cross-section)0.200 mm^2
automatic wrenchingJa
self adjustingJa
strip length adjustableJa
wire cutter presentJa
depth of notch adjustableNein
longitudinal section presentNein
impact protection presentJa
round edge presentNein
isolation protection (1000 V) presentNein
spiral cut possibleNein
Product typeQUICK WIREFOX 6 SC
GTIN4017918910136
product article number of manufacturer1207637
Manufacturer namePhoenix Contact GmbH & Co. KG
address of additional linkhttp://www.phoenixcontact.com/product/1207637
Manufacturer product descriptionAbisolierzange für kurzschlussfeste Leitungen, Abisolierbereich: 1,5 bis 6 mm², Drahtschneiden bis 6 mm², Kabelstopper bis 18 mm²
Manufacturer product designationAbisolierzange
GLN of manufacturer4063151
URI of manufacturerwww.phoenixcontact.com
URI of the producthttp://www.phoenixcontact.com/product/1207637
length205 mm
Height of head over all38 mm
Max. cross section6 mm^2
Min. cross section0.200 mm^2
Insulation presentNein
Net weight205 g
Design of handle1-Komponenten
width of head over all17 mm

ETIM 10.0

EC002109 Wire stripper pliers
VDE testedNein
Handle coverKunststoffhüllen
ESD testedNein
Jaw length6 mm
Head width17 mm
Strip range diameter2.900 mm
Strip range cross-section6 mm^2
Self-adjustingJa
Strip length adjustableJa
With wire cutterJa
Depth of notch adjustableNein
Longitudinal sectionNein
With impact protectionJa
Round edgeNein
Isolation protection 1000 VNein
Spiral cutNein
Length205 mm
Head height38 mm
InsulatedNein
Grip design1-Komponenten

ETIM 9.0

EC002109 Wire stripper pliers
VDE testedNein
Handle coverKunststoffhüllen
ESD testedNein
Jaw length6 mm
Head width17 mm
Strip range diameter2.900 mm
Strip range cross-section6 mm^2
Self-adjustingJa
Strip length adjustableJa
With wire cutterJa
Depth of notch adjustableNein
Longitudinal sectionNein
With impact protectionJa
Round edgeNein
Isolation protection 1000 VNein
Spiral cutNein
Length205 mm
Head height38 mm
InsulatedNein
Grip design1-Komponenten
