PHOENIX CONTACT

Electric engineering, automation, process control engineering

Control, Process Control System (PCS)

Programmable logic control (SPS)

SPS communication module

2702774 - GW EIP/ASCII 2E/2DB9

PHOENIX CONTACT

...

Programmable logic control (SPS)

SPS communication module

2702774 - GW EIP/ASCII 2E/2DB9

PHOENIX CONTACT 2702774

Развернуть таблицу

1/5

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

width

BAF016 [mm]

height

BAA020 [mm]

net weight

AAF040 [kg]

2702774

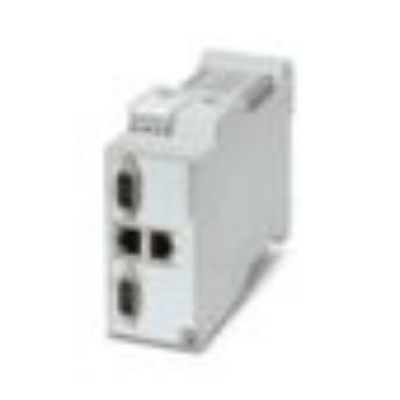

GW EIP/ASCII 2E/2DB9

Interface converters

The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP. Includes two RJ45 ports and two D-SUB 9 ports.

Phoenix Contact GmbH & Co. KG

4055626339429

45.2

0.159

Показать сжатый показ (1 продукта)

Идентификационный номер	2702774
Сокращенный текст	Interface converters
Полный текст	The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP. Includes two RJ45 ports and two D-SUB 9 ports.
Последнее изменение	26.02.2026 18:53:59
Единица

Ключевое слово

Классификации

CNS

CNSERPBASE Object Properties

Description long	The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP. Includes two RJ45 ports and two D-SUB 9 ports.
Description short	Interface converters
GTIN-Code	4055626339429
Order Number	2702774

CNSPHYPROP Physical Properties

ECLASS 14.0

27-24-22-08 SPS communication module

web-server present	Yes
Product type	GW EIP/ASCII 2E/2DB9
GTIN	4055626339429
product article number of manufacturer	2702774
Manufacturer name	Phoenix Contact GmbH & Co. KG
Application standards	EN 55022, EN 55024
address of additional link	http://www.phoenixcontact.com/product/2702774
SILcl acc. to EN 62061	0
Manufacturer product description	The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP. Includes two RJ45 ports and two D-SUB 9 ports.
Manufacturer product designation	Interface converters
GLN of manufacturer	4063151
certificate/approval	KC

ECLASS 13.0

27-24-22-08 SPS communication module

IO-link master present	No
Performance level acc. to EN ISO 13849-1	without
web-server present	Yes
transmission standard	without
Product type	GW EIP/ASCII 2E/2DB9
safety integrity level (SIL)	without
Number of HW interfaces Industrial Ethernet	0
Number of HW interfaces parallel	0
Number of HW interfaces PROFINET	0
Number of HW interfaces serial RS232	2
Number of HW interfaces serial RS422	2
Number of HW interfaces serial RS485	2
Number of HW interfaces serial TTY	0
Number of HW interfaces USB	0
Number of HW interfaces Wireless	0
Number of HW interfaces, other	0
GTIN	4055626339429
product article number of manufacturer	2702774
Manufacturer name	Phoenix Contact GmbH & Co. KG
Application standards	EN 55022, EN 55024
address of additional link	http://www.phoenixcontact.com/product/2702774
SILcl acc. to EN 62061	0
Manufacturer product description	The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP. Includes two RJ45 ports and two D-SUB 9 ports.
Manufacturer product designation	Interface converters
GLN of manufacturer	4063151
height	99 mm
certificate/approval	KC
depth	115 mm
Corresponding operating medium (Ex ia)	No
Corresponding operating medium (Ex ib)	No
Optical interface present	No
Potential separation present	No
Redundancy-compatible present	No
suitable for safety functions	No
Explosion protection categories for gases	without
Explosion protected category for dusts	without
width	45.2 mm

ETIM 10.0

EC001423 PLC communication module

IO link master	No
Performance level according to EN ISO 13849-1	without
Radio standard Bluetooth	without
SIL according to IEC 61508	without
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces parallel	0
Number of interfaces PROFINET	0
Number of HW-interfaces RS-232	2
Number of HW-interfaces RS-422	2
Number of HW-interfaces RS-485	2
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of HW-interfaces other	0
Height	99 mm
Depth	115 mm
Appendant operation agent (Ex ia)	No
Appendant operation agent (Ex ib)	No
With optical interface	No
With potential separation	No
Redundancy	No
Suitable for safety functions	No
Explosion safety category for gas	without
Explosion safety category for dust	without
Width	45.2 mm

ETIM 9.0

EC001423 PLC communication module

IO link master	No
Performance level according to EN ISO 13849-1	without
Radio standard Bluetooth	without
SIL according to IEC 61508	without
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces parallel	0
Number of interfaces PROFINET	0
Number of HW-interfaces RS-232	2
Number of HW-interfaces RS-422	2
Number of HW-interfaces RS-485	2
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of HW-interfaces other	0
Height	99 mm
Depth	115 mm
Appendant operation agent (Ex ia)	No
Appendant operation agent (Ex ib)	No
With optical interface	No
With potential separation	No
Redundancy	No
Suitable for safety functions	No
Explosion safety category for gas	without
Explosion safety category for dust	without
Width	45.2 mm
