LV948088

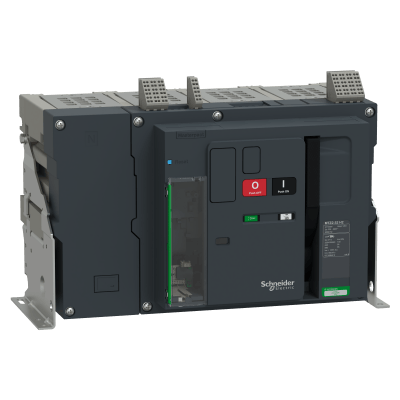

Circuit breaker frame, MasterPacT MTZ2 32H2, for MicroLogic Active, 3200A, 100kA/440VAC 50/60Hz (Icu), 4P, fixed

This device is a breaker frame for MasterPacT MTZ with Micrologic Active last generation of high current air circuit breakers. MasterPacT MTZ2 32H2 is a 4 poles breaker frame in fixed version. The rated current is 3200A. The breaking capacity (Icu) is 100kA rms at 440VAC 50/60Hz. This breaker frame is compatible with MicroLogic Active control unit which has also to be ordered separately. MasterPacT MTZ Active combines real-time information and ease of use to enable fast mitigation of outage events. MasterPacT MTZ Active is designed to achieve new levels of uptime and agility. MicroLogic Active control units embeds features for protection, measurement, communication, maintenance and diagnosis. The dimensions are 537mm (W) x 352mm (H) x 300mm (D), the weight is approximately 65kg. MasterPacT MTZ Active is compliant with international standards IEC 60947-1 and IEC 60947-2. MasterPacT MTZ Active circuit breakers are part of the Active Panel solution made possible by Schneider Electric’s EcoStruxure Power architecture. Green packaging eliminates single-use plastics and features 100% recycled and recyclable cardboard. Transformer efficiency data helps inform actions to save energy and reduce CO2 emissions.

3606486812655

LV948088

Schneider Electric

LV948088

1920.000
