IF2030030w
1/5
Manufacturer
FIRMA
Article Number
ARTNR
Description short text
DESCSHORT
Field of use
AW
Fire resistance class
FK
LOD Level
LODLEVEL
Preview picture
VORSCHAUBILD
Outer Width of Channel (BA)
BA [mm]
Outer Height of Channel (HA)
HA [mm]
Channel length (L)
L [mm]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1080050v

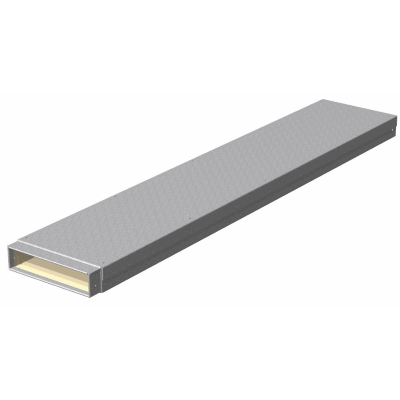

Instafix® BKI straight duct 1000 x 80 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1080050w

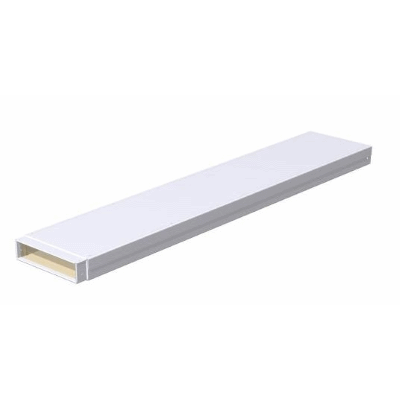

Instafix® BKI straight duct 1000 x 80 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1200050v
Instafix® BKI straight duct 1000 x 200 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1200050w
Instafix® BKI straight duct 1000 x 200 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1260100v

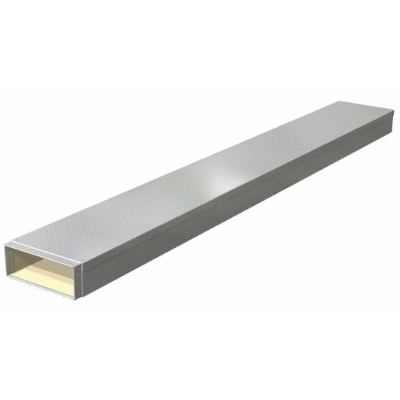

Instafix® BKI straight duct 1000 x 260 x 100 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1260100w
Instafix® BKI straight duct 1000 x 260 x 100 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1400120v
Instafix® BKI straight duct 1000 x 400 x 120 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
400.0
120.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF1400120w
Instafix® BKI straight duct 1000 x 400 x 120 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
400.0
120.0
1000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2030030v
Instafix® BKI straight duct 2000 x 30 x 30 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
31.6
31.6
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2030030w

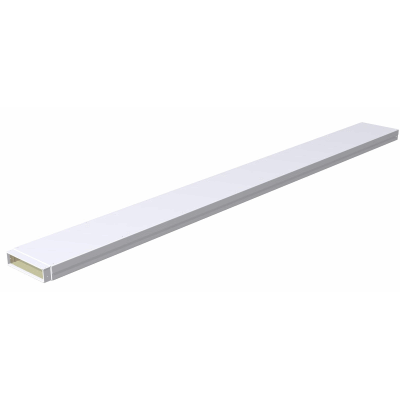

Instafix® BKI straight duct 2000 x 30 x 30 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
31.6
31.6
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2040040v
Instafix® BKI straight duct 2000 x 40 x 40 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
41.6
41.6
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2040040w
Instafix® BKI straight duct 2000 x 40 x 40 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
41.6
41.6
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2080050v
Instafix® BKI straight duct 2000 x 80 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2080050w
Instafix® BKI straight duct 2000 x 80 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2200050v
Instafix® BKI straight duct 2000 x 200 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2200050w
Instafix® BKI straight duct 2000 x 200 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2260100v
Instafix® BKI straight duct 2000 x 260 x 100 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
2000
Wichmann Brandschutzsysteme GmbH & Co. KG
IF2260100w
Instafix® BKI straight duct 2000 x 260 x 100 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
2000
Wichmann - Straight channel
| Идентификационный номер | IF2030030w |
| Сокращенный текст | Electrical installation duct |
| Последнее изменение | 07.05.2024 09:49:22 |
| Единица |
