6SL32020AE318SA0

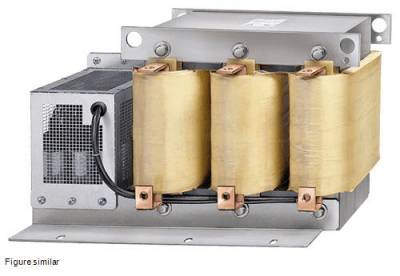

sine-wave filter 182,0 A 0,470 kW

SINAMICS Sinus filter for Power Module FSF Stand-alone 380-480V 3AC 182.0A Electrical filter SINAMICS sinewave filter for the PM 250 Power Module of the SINAMICS G120 modular frequency converter. Sinewave filters limit both the rate of change of the voltage (dv/dt) and the peak voltages across the motor winding. In a similar way to an output reactor, it permits connection of longer motor cables. Shaft currents are also substantially reduced. This makes it possible to run standard motors with standard insulation and without insulated bearings connected to SINAMICS. The voltage load on the motor winding is therefore almost at the same level as in direct on-line operation. Due to the very small rates of change of the voltage on the motor cable, the sinewave filter also has a positive effect on the electromagnetic compatibility (EMC). The sinewave filter is available in a three-phase voltage range 380 V to 480 V in frame sizes FSC to FSF. SINAMICS - simply my drive!

887621550172

6SL3202-0AE31-8SA0

6SL32020AE318SA0

Siemens

SINE-WAVE FILTER FSF 3AC 380-480V-182,0A

350

468
