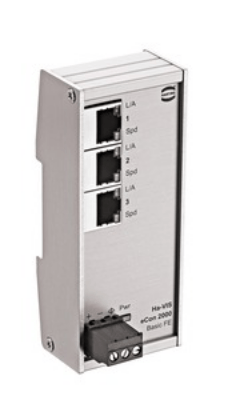

24020030000 - Ha-VIS eCon 2030BT-A

HARTING

...

Network component (general application)

Network switch (general application)

24020030000 - Ha-VIS eCon 2030BT-A

HARTING 24020030000

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

max. ambient temperature during operating phase

AAF525 [°C]

24020030000

Ha-VIS eCon 2030BT-A

Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, 10/100 Mbit/s (RJ45-Ports): 3 x

Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, Operating temperature: -40 ... +70 °C

5713140147133

24 02 003 0000

HARTING

Sıkıştırılmış görünümü göster (1 ürün)

Sipariş numarası	24020030000
Shorttext	Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, 10/100 Mbit/s (RJ45-Ports): 3 x
Longtext	Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, Operating temperature: -40 ... +70 °C
Son değişiklik	17.02.2025 13:23:15
Parça

Anahtar Kelimeler

Sınıflandırmalar

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85176200
Description long	Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, Operating temperature: -40 ... +70 °C
Description short	Industrial Ethernet Switches, Unmanaged, Fast Ethernet, Nominal voltage: 24, 48, Total number of ports: 3, 10/100 Mbit/s (RJ45-Ports): 3 x
GTIN-Code	5713140147133
Order Number	24020030000

CNSPHYPROP Physical Properties

ECLASS 14.0

19-17-01-30 Ağ anahtarı (genel uygulama)

Çalışma aşamasında maks. ortam sıcaklığı	70 °C
Çalışma aşamasında min. ortam sıcaklığı	-40 °C
besleme gerilimi (DC'de)	24 V
sabitleme tipi (35 mm DIN ray montajı) mevcuttur	Yes
mevcut sabitleme türü (medya modülü yuvası üzerine inşa edilmiş)	No
sabitleme tipi (ray montajı) mevcut	No
sabitleme türü (duvar sabitleme) mevcut	No
sabitleme tipi (19 inç kurulum) mevcut	No
sabitleme türü (sabit kurulum) mevcut	No
10 gigabit ethernet mevcut	No
hızlı ethernet mevcut	Yes
gigabit ethernet mevcut	No
4. katman mevcut	No
GTIN	5713140147133
üreti̇ci̇ni̇n ürün madde numarasi	24 02 003 0000
Marka	Ha-VIS eCon 2000
Ağ bağlantılarının sayısı	3
Mevcut toplam bağlantı sayısı	3
pazarlanan miktarları kaydetmek için net ağırlık (WEEE)	0.162 kg
Üretici ürün ailesi	Ha-VIS eCon 2000
Gümrük tarife numarası türü	TARIC
Maks. erişim	100 m
Kütle	162 g
Tip	Industrial Ethernet Switches
Veri bağlantı protokolü	Fast Ethernet
İletişim, tip	Fast Ethernet

ECLASS 13.0

19-17-01-30 Network switch (general application)

max. ambient temperature during operating phase	70 °C
min. ambient temperature during operating phase	-40 °C
supply voltage (at DC)	24 V
type of fixing (35 mm DIN rail mounting) available	Yes
type of fixing (built on the media module slot) available	No
type of fixing (rail mounting) available	No
type of fixing (wall fastening) available	No
type of fixing (19-inch installation) available	No
type of fixing (fixed installation) available	No
number of ports 10/100 Mbps RJ45	3
10 gigabit ethernet present	No
fast ethernet present	Yes
gigabit ethernet present	No
layer 2 present	Yes
layer 3 present	No
layer 4 present	No
GTIN	5713140147133
product article number of manufacturer	24 02 003 0000
Brand	Ha-VIS eCon 2000
Number of network connections	3
Total number of available connections	3
net weight to record marketed quantities (WEEE)	0.162 kg
Manufacturer product family	Ha-VIS eCon 2000
Type of customs tariff number	TARIC
height	113.500 mm
depth	27.300 mm
Max. reach	100 m
Mass	162 g
Type	Industrial Ethernet Switches
width	46.500 mm
Data connection protocol	Fast Ethernet
Communication, type	Fast Ethernet
degree of protection	IP30, mated condition

ECLASS 12.0

19-17-01-30 Network switch (general application)

customs tariff number (TARIC)	85176200
max. ambient temperature during operating phase	70 °C
min. ambient temperature during operating phase	-40 °C
supply voltage (at DC)	24 V
type of fixing (35 mm DIN rail mounting) available	Yes
type of fixing (built on the media module slot) available	No
type of fixing (rail mounting) available	No
type of fixing (wall fastening) available	No
type of fixing (19-inch installation) available	No
type of fixing (fixed installation) available	No
number of ports 10/100 Mbps RJ45	3
10 gigabit ethernet present	No
fast ethernet present	Yes
gigabit ethernet present	No
layer 2 present	Yes
layer 3 present	No
layer 4 present	No
GTIN	5713140147133
product article number of manufacturer	24 02 003 0000
Brand	Ha-VIS eCon 2000
Number of network connections	3
Total number of available connections	3
net weight to record marketed quantities (WEEE)	0.162 kg
Manufacturer product family	Ha-VIS eCon 2000
Type of customs tariff number	TARIC
height	113.500 mm
depth	27.300 mm
Max. reach	100 m
Mass	162 g
Type	Industrial Ethernet Switches
width	46.500 mm
Data connection protocol	Fast Ethernet
Communication, type	Fast Ethernet
degree of protection	IP30, mated condition

ETIM 10.0

EC000734 Network switch

Number of ports 10/100 Mbps RJ45	3
Layer 2	Yes
Layer 3	No
Height	113.500 mm
Depth	27.300 mm
Width	46.500 mm
Degree of protection (IP)	IP30, mated condition

ETIM 9.0

EC000734 Network switch

Number of ports 10/100 Mbps RJ45	3
Layer 2	Yes
Layer 3	No
Height	113.500 mm
Depth	27.300 mm
Width	46.500 mm
Degree of protection (IP)	IP30, mated condition

ETIM 8.0

EC000734 Network switch
