24024052100 - Ha-VIS eCon 2052GBT-AD

HARTING

...

Network component (general application)

Network switch (general application)

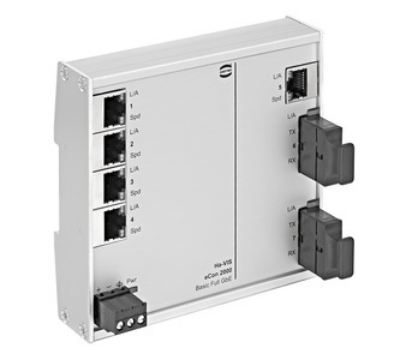

24024052100 - Ha-VIS eCon 2052GBT-AD

HARTING 24024052100

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

max. ambient temperature during operating phase

AAF525 [°C]

24024052100

Ha-VIS eCon 2052GBT-AD

Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7

Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7, Operating temperature: -40 ... +70 °C

5713140147553

24 02 405 2100

HARTING

140

Sıkıştırılmış görünümü göster (1 ürün)

Sipariş numarası	24024052100
Shorttext	Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7
Longtext	Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7, Operating temperature: -40 ... +70 °C
Son değişiklik	17.02.2025 13:23:18
Parça

Anahtar Kelimeler

Sınıflandırmalar

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85176200
Description long	Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7, Operating temperature: -40 ... +70 °C
Description short	Industrial Ethernet Switches, Unmanaged, Full Gigabit Ethernet, Nominal voltage: 24, 48, Total number of ports: 7
GTIN-Code	5713140147553
Order Number	24024052100

CNSPHYPROP Physical Properties

ECLASS 14.0

19-17-01-30 Ağ anahtarı (genel uygulama)

Çalışma aşamasında maks. ortam sıcaklığı	70 °C
Çalışma aşamasında min. ortam sıcaklığı	-40 °C
besleme gerilimi (DC'de)	24 V
sabitleme tipi (35 mm DIN ray montajı) mevcuttur	Yes
mevcut sabitleme türü (medya modülü yuvası üzerine inşa edilmiş)	No
sabitleme tipi (ray montajı) mevcut	No
sabitleme türü (duvar sabitleme) mevcut	No
sabitleme tipi (19 inç kurulum) mevcut	No
sabitleme türü (sabit kurulum) mevcut	No
10 gigabit ethernet mevcut	Yes
hızlı ethernet mevcut	No
gigabit ethernet mevcut	Yes
4. katman mevcut	No
GTIN	5713140147553
üreti̇ci̇ni̇n ürün madde numarasi	24 02 405 2100
Marka	Ha-VIS eCon 2000
Ağ bağlantılarının sayısı	7
Mevcut toplam bağlantı sayısı	7
pazarlanan miktarları kaydetmek için net ağırlık (WEEE)	0.384 kg
Üretici ürün ailesi	Ha-VIS eCon 2000
Gümrük tarife numarası türü	TARIC
Kütle	384 g
Tip	Industrial Ethernet Switches
Veri bağlantı protokolü	Full Gigabit Ethernet
İletişim, tip	Full Gigabit Ethernet

ECLASS 13.0

19-17-01-30 Network switch (general application)

max. ambient temperature during operating phase	70 °C
min. ambient temperature during operating phase	-40 °C
supply voltage (at DC)	24 V
type of fixing (35 mm DIN rail mounting) available	Yes
type of fixing (built on the media module slot) available	No
type of fixing (rail mounting) available	No
type of fixing (wall fastening) available	No
type of fixing (19-inch installation) available	No
type of fixing (fixed installation) available	No
number of ports 1000 Mbps SC (SX)	2
10 gigabit ethernet present	Yes
fast ethernet present	No
gigabit ethernet present	Yes
layer 2 present	Yes
layer 3 present	No
layer 4 present	No
GTIN	5713140147553
product article number of manufacturer	24 02 405 2100
Brand	Ha-VIS eCon 2000
Number of network connections	7
Total number of available connections	7
net weight to record marketed quantities (WEEE)	0.384 kg
Manufacturer product family	Ha-VIS eCon 2000
Type of customs tariff number	TARIC
height	113.500 mm
depth	27.300 mm
Mass	384 g
Type	Industrial Ethernet Switches
width	120 mm
Data connection protocol	Full Gigabit Ethernet
Communication, type	Full Gigabit Ethernet
degree of protection	IP30, mated condition

ECLASS 12.0

19-17-01-30 Network switch (general application)

customs tariff number (TARIC)	85176200
max. ambient temperature during operating phase	70 °C
min. ambient temperature during operating phase	-40 °C
supply voltage (at DC)	24 V
type of fixing (35 mm DIN rail mounting) available	Yes
type of fixing (built on the media module slot) available	No
type of fixing (rail mounting) available	No
type of fixing (wall fastening) available	No
type of fixing (19-inch installation) available	No
type of fixing (fixed installation) available	No
number of ports 1000 Mbps SC (SX)	2
10 gigabit ethernet present	Yes
fast ethernet present	No
gigabit ethernet present	Yes
layer 2 present	Yes
layer 3 present	No
layer 4 present	No
GTIN	5713140147553
product article number of manufacturer	24 02 405 2100
Brand	Ha-VIS eCon 2000
Number of network connections	7
Total number of available connections	7
net weight to record marketed quantities (WEEE)	0.384 kg
Manufacturer product family	Ha-VIS eCon 2000
Type of customs tariff number	TARIC
height	113.500 mm
depth	27.300 mm
Mass	384 g
Type	Industrial Ethernet Switches
width	120 mm
Data connection protocol	Full Gigabit Ethernet
Communication, type	Full Gigabit Ethernet
degree of protection	IP30, mated condition

ETIM 10.0

EC000734 Network switch

Number of ports 1000 Mbps SC (SX)	2
Layer 2	Yes
Layer 3	No
Height	113.500 mm
Depth	27.300 mm
Width	120 mm
Degree of protection (IP)	IP30, mated condition

ETIM 9.0

EC000734 Network switch

Number of ports 1000 Mbps SC (SX)	2
Layer 2	Yes
Layer 3	No
Height	113.500 mm
Depth	27.300 mm
Width	120 mm
Degree of protection (IP)	IP30, mated condition

ETIM 8.0

EC000734 Network switch
