019192899

Expand Table

1/5

Firma/Herstellername

SA010ID04

Armaturen-Typbezeichnung

SA110ID04

Produktbeschreibung

SA700ID30

Beschreibungstext

SA810ID10

Bestell-Nummer

SA810ID03

GTIN-Nummer

SA810ID06

Produkt-Preview

Detaillierungsgrad

LOD

Langtext

LONGDESC

SCHELL GmbH & Co. KG

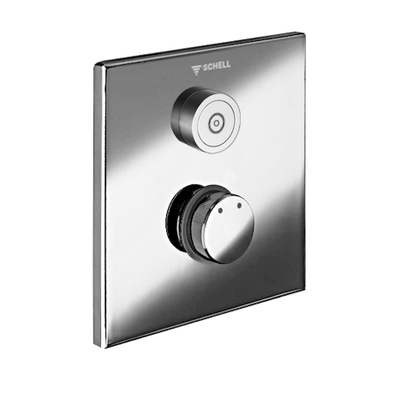

Unterputz-Dusche LINUS D-C-M

Unterputz-Dusche LINUS D-C-M, CVD, Mischwasser, o. Stromversorgung, Edelstahl

Concealed shower LINUS D-C-M, Mixed water, Front panel, IP65 (CVD touch electronics), Front panelBrushed stainless steel

019192899

4021163159493

350

Concealed shower LINUS D-C-M Mixed water For WBD-E-M concealed masterbox. Triggering via CVD-Touch electronics with automatic closing. Optional battery or mains operation. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC. Scope of delivery Front panel Mixed water operating button with push sleeve CVD-Touch electronics, programmable, IP65 protection against low-pressure water jets Installation frame Fastening material Technical data Setting options via SWS SSC Actuation force (soft/medium/hard) Manual programming (off/on) Max. flow time (1-950 s) Stagnation flush (off/1-1000 s, every 1-250 h after last flush/every 1-250 h) Actuation timeout (off/1-255 s, timeout 1-2000 min) Setting options via manual programming Max. flow time (4-120 s, 10 program stages) Stagnation flush (off/20 s, every 24 h) Material: Actuation Brass; Front panel Stainless steel Surface: Actuation Chrome; Front panel Brushed stainless steel Dimensions front plate: w 180 mm x h 188 mm x d 11.5 mm Protection class: IP65 (CVD touch electronics) - 019192899
