DKK4N-CP
1/5
Preview
PREVIEW
Name
NAME
Product Category
PTCY
Pitch
PH [mm]
Color
CR
Connection method
CNMD
Length
LH [mm]
Width
WH [mm]
Height
HH [mm]
Circuit diagram
CTDM
Level
LL
Connection points
CNPS
Insulating material
IGML
Insulating material group
IGMLGP
UL94 Flammability rating
UL94FR
Insulation resistance
INRE
Conductor material
CRML
Plating of conductor surface
POCS
1

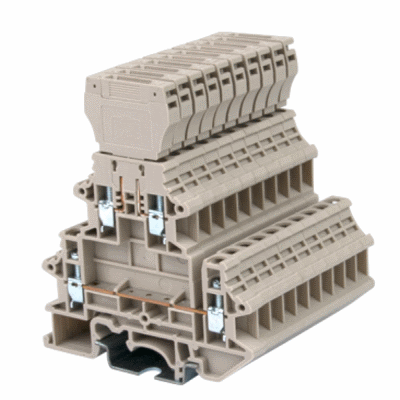

DKK4N-CP
Disconnect Terminal Block
6.10
BEIGE (default)
Screw Connection
71.5
6.1
84.3(TS-35N)/91.8(TS-35/15N)
2
2
4
PA66
I
V0
≥500MΩ at DC 500V
COPPER ALLOY
Tin PLATED
DINKLE - DKK4N-CP
| Bestellnummer | DKK4N-CP |
| Kurztext | Disconnect Terminal Block,Screw Connection,Width:6.10mm,M3,300V,6A |
| Letzte Änderung | 28.12.2024 12:00:51 |
| Einheit |
