3094006_Rexa MINI3-V04.11_T06-540_O-5M

3094001

Rexa MINI3-V04.09/M05-523/P-5M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

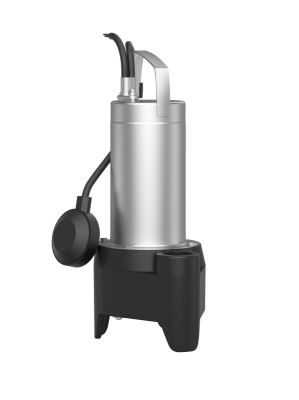

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with fitted plug (CEE 7/7). Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.09/M05-523/P-5M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094003

Rexa MINI3-V04.09/T05-540/O-5M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 3~ motor with self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with bare cable end, for fixed connection to on-site controls. Pump without float switch and plug! Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.09/T05-540/O-5M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094005

Rexa MINI3-V04.11/M06-523/A-5M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with float switch and fitted plug (CEE 7/7). Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.11/M06-523/A-5M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094007

Rexa MINI3-V04.13/M08-523/A-5M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with float switch and fitted plug (CEE 7/7). Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.13/M08-523/A-5M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094009

Rexa MINI3-V04.09/M05-523/A-10M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with float switch and fitted plug (CEE 7/7). Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.09/M05-523/A-10M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094011

Rexa MINI3-V04.11/M06-523/P-10M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with fitted plug (CEE 7/7). Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.11/M06-523/P-10M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10

3094013

Rexa MINI3-V04.11/T06-540/O-10M

WILO SE

350

Submersible pump for stationary and portable wet installation in intermittent operation.

Submersible pump for stationary and portable wet well installation in intermittent operation. For the pumping in domestic areas of: *Sewage not containing faeces *Wastewater (with small amounts of sand and gravel) Sewage pump with vortex impeller and vertical threaded connection. Hydraulics housing made of grey cast iron, impeller made of plastic. Surface-cooled 3~ motor with self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Detachable connection cable with bare cable end, for fixed connection to on-site controls. Pump without float switch and plug! Note: Sewage containing faeces can be pumped when the pump is installed in the DrainLift WS 50 pump chamber. The system has been approved in accordance with EN 12050-1.

Rexa MINI3-V04.11/T06-540/O-10M

EC010733

BA

1.4301. X5CrNi18-10

X5CrNi18-10
