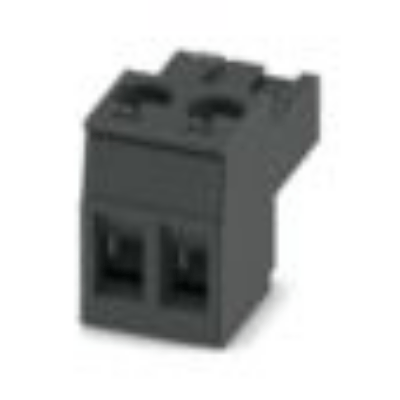

1800934 - MSTBT 2,5/ 2-ST-5,08 BK

PHOENIX CONTACT

...

Plug-in PCB connection technology

PCB connector (conductor connection)

1800934 - MSTBT 2,5/ 2-ST-5,08 BK

PHOENIX CONTACT 1800934

Expand Table

1/5

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

width

BAF016 [mm]

height

BAA020 [mm]

1800934

MSTBT 2,5/ 2-ST-5,08 BK

PCB connector

PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard

Phoenix Contact GmbH & Co. KG

4017918955243

10.160

顯示壓縮表示形式(1 Produkt)

訂購編碼	1800934
Shorttext	PCB connector
Longtext	PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard
上次修改	11.02.2026 08:46:29
單位

关键字

分類

CNS

CNSERPBASE Object Properties

Description long	PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard
Description short	PCB connector
GTIN-Code	4017918955243
Order Number	1800934

CNSPHYPROP Physical Properties

ECLASS 14.0

27-46-02-02 PCB connector (conductor connection)

Type of connection conductor	Screw connection
Type of interlock	without
Type of packaging	packed in cardboard
Product type	MSTBT 2,5/ 2-ST-5,08 BK
GTIN	4017918955243
product article number of manufacturer	1800934
Manufacturer name	Phoenix Contact GmbH & Co. KG
Number of rows	1
Application standards	IEC 61984
address of additional link	http://www.phoenixcontact.com/product/1800934
Manufacturer product family	MSTBT 2,5/..-ST
Manufacturer product description	PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard
Manufacturer product designation	PCB connector
GLN of manufacturer	4063151
Rated voltage (II/2)	630 V
Rated voltage (III/2)	320 V
Rated voltage (III/3)	250 V
Rated surge voltage (II/2)	4 kV
Rated surge voltage (III/2)	4 kV
Rated surge voltage (III/3)	4 kV
Grid dimensions 1	5.080 mm
Locking system	none
Number of conductor connections per pole	2
Conductor connection direction	0 °
min. conductor cross-section (flexible wire with ferrule without plastic collar)	0.250 mm^2
max. conductor cross-section (flexible wire with ferrule without plastic collar)	2.500 mm^2
min. conductor cross-section (flexible wire with ferrule with plastic collar)	0.250 mm^2
max. conductor cross-section (flexible wire with ferrule with plastic collar)	2.500 mm^2
Plug-in direction	0 °
lower limit temperature	-40 °C
upper limit temperature	100 °C
Coating plug contact area	Tin (Sn)
Coating conductor contact area	Tin (Sn)
height	15 mm
certificate/approval	CSA, cULus Recognized
depth	18.200 mm
Assembly	plugged-in
width	10.160 mm

ECLASS 13.0

27-46-02-02 PCB connector (conductor connection)

Type of connection conductor	Screw connection
Type of interlock	without
Contact design	Socket
Type of packaging	packed in cardboard
Material of the contact	Copper
rated current	12 A
Product type	MSTBT 2,5/ 2-ST-5,08 BK
GTIN	4017918955243
product article number of manufacturer	1800934
Manufacturer name	Phoenix Contact GmbH & Co. KG
Number of rows	1
Application standards	IEC 61984
address of additional link	http://www.phoenixcontact.com/product/1800934
Pole number	2
Manufacturer product family	MSTBT 2,5/..-ST
Manufacturer product description	PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard
Manufacturer product designation	PCB connector
GLN of manufacturer	4063151
Rated voltage (II/2)	630 V
Rated voltage (III/2)	320 V
Rated voltage (III/3)	250 V
Rated surge voltage (II/2)	4 kV
Rated surge voltage (III/2)	4 kV
Rated surge voltage (III/3)	4 kV
Grid dimensions 1	5.080 mm
Locking system	none
Number of conductor connections per pole	2
Conductor connection direction	0 °
min. conductor cross-section (flexible wire with ferrule without plastic collar)	0.250 mm^2
max. conductor cross-section (flexible wire with ferrule without plastic collar)	2.500 mm^2
min. conductor cross-section (flexible wire with ferrule with plastic collar)	0.250 mm^2
max. conductor cross-section (flexible wire with ferrule with plastic collar)	2.500 mm^2
Plug-in direction	0 °
lower limit temperature	-40 °C
upper limit temperature	100 °C
Coating plug contact area	Tin (Sn)
Coating conductor contact area	Tin (Sn)
height	15 mm
color of housing	black
certificate/approval	CSA, cULus Recognized
depth	18.200 mm
flammability rating of the insulating material (based on UL 94)	V0
material of insulation	PA
Max. line cross section, flexible	2.500 mm^2
Max. line cross section, rigid	2.500 mm^2
Min. line cross section, flexible	0.200 mm^2
Min. line cross section, rigid	0.200 mm^2
Assembly	plugged-in
width	10.160 mm

ETIM 10.0

EC002638 Cable connector

Contact type	Socket
Material contact	Copper
Rated current In	12 A
Number of poles	2
Housing colour	black
Material insulation body	PA
Connectable conductor cross section fine-strand without cable end sleeve	2.500 mm^2
Connectable conductor cross section solid-core	2.500 mm^2

ETIM 9.0

EC002638 Cable connector

Contact type	Socket
Material contact	Copper
Rated current In	12 A
Number of poles	2
Housing colour	black
Inflammability class of insulation material according to with UL94	V0
Material insulation body	PA
Connectable conductor cross section fine-strand without cable end sleeve	2.500 mm^2
Connectable conductor cross section solid-core	2.500 mm^2
