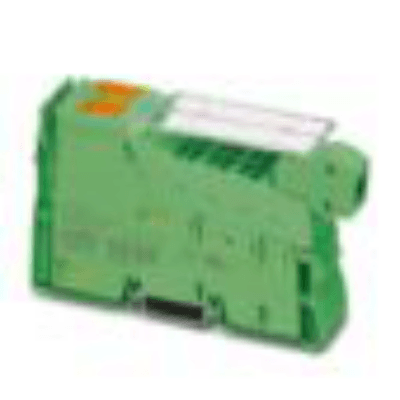

PHOENIX CONTACT 2702134
Expand Table
1/5
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
width
BAF016 [mm]
height
BAA020 [mm]
1
2702134
IB IL CNT-XC-PAC
Function module
Inline, Function terminal, Counter input for 24 V signals: 1, Control input for 24 V signals: 1, Switching output: 1, 24 V DC, 0.5 A, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields
Phoenix Contact GmbH & Co. KG
38
4046356981798
24.300
136.040
顯示壓縮表示形式(1 Produkt)
零件資訊
相似件
附件
Request for quote (RFQ)
ETIM 9.0 - 2702134
| 訂購編碼 | 2702134 |
| Shorttext | Function module |
| Longtext | Inline, Function terminal, Counter input for 24 V signals: 1, Control input for 24 V signals: 1, Switching output: 1, 24 V DC, 0.5 A, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields |
| 上次修改 | 26.02.2026 18:55:16 |
| 單位 |
分類
CNS
CNSERPBASE Object Properties
| Description long | Inline, Function terminal, Counter input for 24 V signals: 1, Control input for 24 V signals: 1, Switching output: 1, 24 V DC, 0.5 A, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields |
| Description short | Function module |
| GTIN-Code | 4046356981798 |
| Order Number | 2702134 |
CNSPHYPROP Physical Properties
ECLASS 14.0
27-24-26-05 現場匯流排，分散式週邊設備-功能/工藝模組
| Product type | IB IL CNT-XC-PAC |
| GTIN | 4046356981798 |
| product article number of manufacturer | 2702134 |
| Manufacturer name | Phoenix Contact GmbH & Co. KG |
| address of additional link | http://www.phoenixcontact.com/product/2702134 |
| SILcl acc. to EN 62061 | 0 |
| Manufacturer product description | Inline, Function terminal, Counter input for 24 V signals: 1, Control input for 24 V signals: 1, Switching output: 1, 24 V DC, 0.5 A, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields |
| Manufacturer product designation | Function module |
| GLN of manufacturer | 4063151 |
| URI of manufacturer | www.phoenixcontact.com |
| URI of the product | http://www.phoenixcontact.com/product/2702134 |
| certificate/approval | cULus Recognized |
ECLASS 13.0
| frequency measurement possible | Yes |
| function block automatic reset present | No |
| function block contactless-acting protective devices present | No |
| function block operating mode selection present | No |
| function block access control present | No |
| IO-link master present | No |
| Performance level acc. to EN ISO 13849-1 | without |
| contactor control functional block present | No |
| function block affirm pushbutton present | No |
| function block 2-hand switching present | No |
| function block restart blockage present | No |
| function/technology module suitable for | Counter input |
| supported protocol | PROFIBUS DP |
| transmission standard | KEINE |
| Product type | IB IL CNT-XC-PAC |
| safety integrity level (SIL) | without |
| Number of HW interfaces Industrial Ethernet | 0 |
| Number of HW interfaces parallel | 0 |
| Number of HW interfaces PROFINET | 0 |
| Number of HW interfaces serial RS232 | 0 |
| Number of HW interfaces serial RS422 | 0 |
| Number of HW interfaces serial RS485 | 0 |
| Number of HW interfaces serial TTY | 0 |
| Number of HW interfaces USB | 0 |
| Number of HW interfaces Wireless | 0 |
| Number of HW interfaces, other | 0 |
| GTIN | 4046356981798 |
| product article number of manufacturer | 2702134 |
| Manufacturer name | Phoenix Contact GmbH & Co. KG |
| Number of functions | 1 |
| address of additional link | http://www.phoenixcontact.com/product/2702134 |
| SILcl acc. to EN 62061 | 0 |
| Manufacturer product description | Inline, Function terminal, Counter input for 24 V signals: 1, Control input for 24 V signals: 1, Switching output: 1, 24 V DC, 0.5 A, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields |
| Manufacturer product designation | Function module |
| GLN of manufacturer | 4063151 |
| URI of manufacturer | www.phoenixcontact.com |
| URI of the product | http://www.phoenixcontact.com/product/2702134 |
| height | 136.040 mm |
| certificate/approval | cULus Recognized |
| depth | 70.510 mm |
| Corresponding operating medium (Ex ia) | No |
| Corresponding operating medium (Ex ib) | No |
| Field bus connection possible via separate bus couplers | Yes |
| Emergency shutdown present | No |
| Optical interface present | No |
| System components present | Yes |
| suitable for safety functions | No |
| Explosion protection categories for gases | without |
| Explosion protected category for dusts | without |
| width | 24.300 mm |
| degree of protection | IP20 |
ETIM 10.0
EC001601 Fieldbus, decentr. periphery - function-/technology module
| Frequency measurement | Yes |
| Function block automatic reset | No |
| Function block contactless working protection installation | No |
| Function block operating mode selection | No |
| Function block access control | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | without |
| Contactor control function block | No |
| Function block affirm pushbutton | No |
| Function block 2-hand switching | No |
| Function block restart blockage | No |
| Suitable for counting | Counter input |
| Supporting protocol for Modbus | PROFIBUS DP |
| Supporting protocol for AS-Interface Safety at Work | PROFIBUS DP |
| Supporting protocol for DeviceNet Safety | PROFIBUS DP |
| Supporting protocol for PROFINET CBA | PROFIBUS DP |
| Supporting protocol for Foundation Fieldbus | PROFIBUS DP |
| Supporting protocol for EtherNet/IP | PROFIBUS DP |
| Supporting protocol for INTERBUS-Safety | PROFIBUS DP |
| Supporting protocol for PROFINET IO | PROFIBUS DP |
| Supporting protocol for SafetyBUS p | PROFIBUS DP |
| Supporting protocol for SERCOS | PROFIBUS DP |
| Supporting protocol for PROFIsafe | PROFIBUS DP |
| Supporting protocol for TCP/IP | PROFIBUS DP |
| Supporting protocol for PROFIBUS | PROFIBUS DP |
| Supporting protocol for INTERBUS | PROFIBUS DP |
| Supporting protocol for KNX | PROFIBUS DP |
| Supporting protocol for DeviceNet | PROFIBUS DP |
| Supporting protocol for SUCONET | PROFIBUS DP |
| Supporting protocol for Data-Highway | PROFIBUS DP |
| Supporting protocol for ASI | PROFIBUS DP |
| Supporting protocol for other bus systems | PROFIBUS DP |
| Supporting protocol for LON | PROFIBUS DP |
| Supporting protocol for CAN | PROFIBUS DP |
| Radio standard Bluetooth | KEINE |
| SIL according to IEC 61508 | without |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces other | 0 |
| Number of functions | 1 |
| Height | 136.040 mm |
| Depth | 70.510 mm |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| Function block emergency stop | No |
| With optical interface | No |
| System accessory | Yes |
| Suitable for safety functions | No |
| Explosion safety category for gas | without |
| Explosion safety category for dust | without |
| Width | 24.300 mm |
| Degree of protection (IP) | IP20 |
ETIM 9.0
| Frequency measurement | Yes |
| Function block automatic reset | No |
| Function block contactless working protection installation | No |
| Function block operating mode selection | No |
| Function block access control | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | without |
| Contactor control function block | No |
| Function block affirm pushbutton | No |
| Function block 2-hand switching | No |
| Function block restart blockage | No |
| Suitable for counting | Counter input |
| Supporting protocol for Modbus | PROFIBUS DP |
| Supporting protocol for AS-Interface Safety at Work | PROFIBUS DP |
| Supporting protocol for DeviceNet Safety | PROFIBUS DP |
| Supporting protocol for PROFINET CBA | PROFIBUS DP |
| Supporting protocol for Foundation Fieldbus | PROFIBUS DP |
| Supporting protocol for EtherNet/IP | PROFIBUS DP |
| Supporting protocol for INTERBUS-Safety | PROFIBUS DP |
| Supporting protocol for PROFINET IO | PROFIBUS DP |
| Supporting protocol for SafetyBUS p | PROFIBUS DP |
| Supporting protocol for SERCOS | PROFIBUS DP |
| Supporting protocol for PROFIsafe | PROFIBUS DP |
| Supporting protocol for TCP/IP | PROFIBUS DP |
| Supporting protocol for PROFIBUS | PROFIBUS DP |
| Supporting protocol for INTERBUS | PROFIBUS DP |
| Supporting protocol for KNX | PROFIBUS DP |
| Supporting protocol for DeviceNet | PROFIBUS DP |
| Supporting protocol for SUCONET | PROFIBUS DP |
| Supporting protocol for Data-Highway | PROFIBUS DP |
| Supporting protocol for ASI | PROFIBUS DP |
| Supporting protocol for other bus systems | PROFIBUS DP |
| Supporting protocol for LON | PROFIBUS DP |
| Supporting protocol for CAN | PROFIBUS DP |
| Radio standard Bluetooth | KEINE |
| SIL according to IEC 61508 | without |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces other | 0 |
| Number of functions | 1 |
| Height | 136.040 mm |
| Depth | 70.510 mm |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| Function block emergency stop | No |
| With optical interface | No |
| System accessory | Yes |
| Suitable for safety functions | No |
| Explosion safety category for gas | without |
| Explosion safety category for dust | without |
| Width | 24.300 mm |
| Degree of protection (IP) | IP20 |
